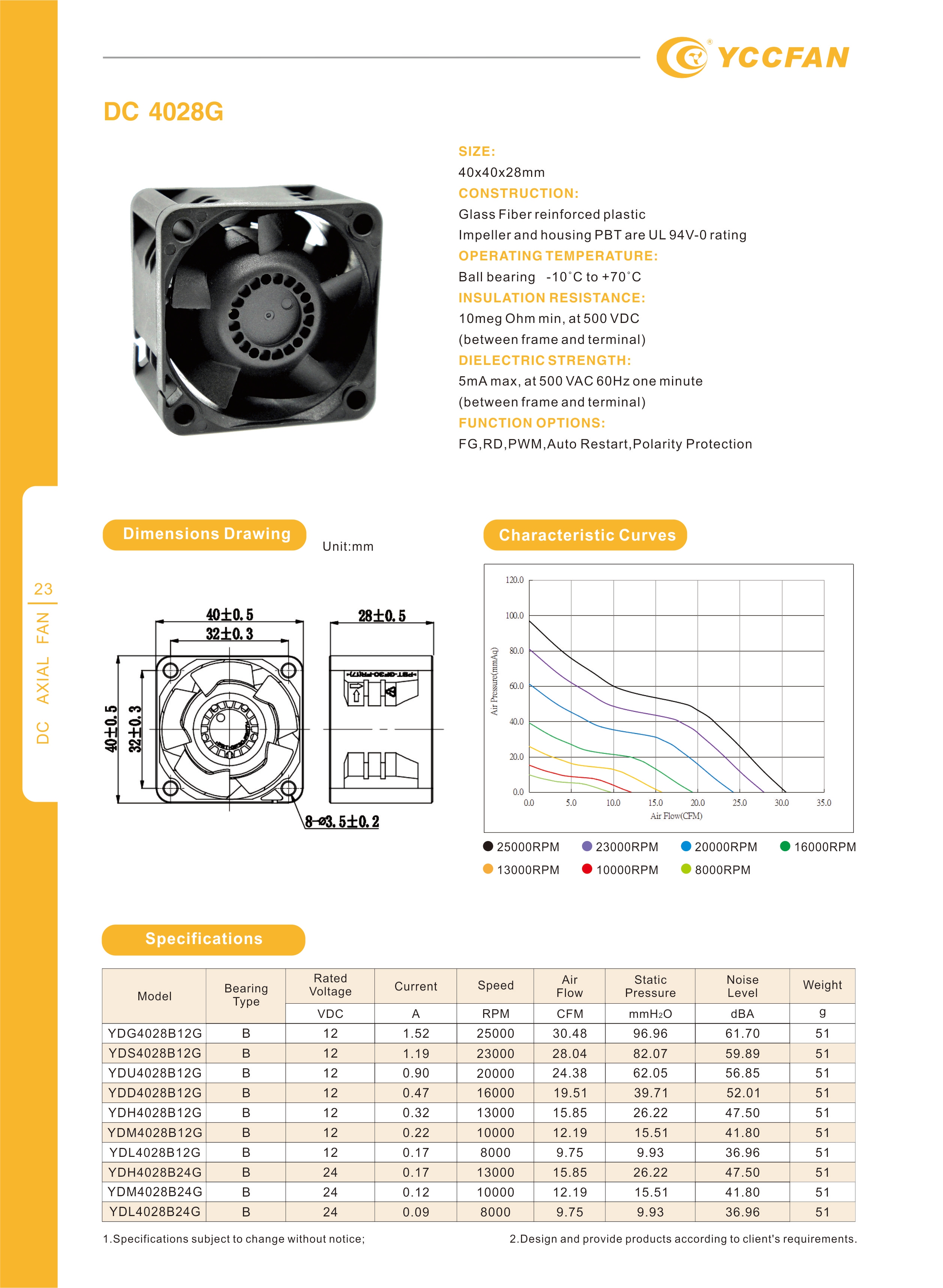

DC4028G B12/B24 40×40×28mm Extreme Pressure DC Fan
An extreme-pressure 40mm DC fan with ball bearing, 25000RPM speed, and 96.96mmH₂O static pressure for very high-resistance cooling paths.
DC4028G is the most pressure-focused product in this 40mm group. With a 40×40×28mm deep frame, ball bearing structure, up to 30.48CFM airflow, and 96.96mmH₂O static pressure, it is intended for filters, dense heat sinks, blocked vents, and demanding forced-air designs.
Rated Voltage: 12VDC / 24VDC
Size: 40×40×28mm
Max Airflow: 30.48CFM / 0.863m³/min
Max Static Pressure: 96.96mmH₂O / 950.7Pa
Rated Speed: Up to 25000RPM
Key Specifications of DC4028-G DC Fan
Compare DC4028-G models by voltage, bearing, speed, airflow, pressure, current, noise, and weight to choose the right DC cooling fan for your design.
| Model | Bearing Type | Rate Voltage（VDC） | Current （A） | Speed （RPM） | Air Flow （CFM） | Static Pressure （mmH₂O） | Noise Level （dBA） | Weight （g） |
|---|---|---|---|---|---|---|---|---|
| YDG4028B12G | B | 12 | 1.52 | 25000 | 30.48 | 96.96 | 61.70 | 51 |
| YDS4028B12G | B | 12 | 1.19 | 23000 | 28.04 | 82.07 | 59.89 | 51 |
| YDU4028B12G | B | 12 | 0.90 | 20000 | 24.38 | 62.05 | 56.85 | 51 |
| YDD4028B12G | B | 12 | 0.47 | 16000 | 19.51 | 39.71 | 52.01 | 51 |
| YDH4028B12G | B | 12 | 0.32 | 13000 | 15.85 | 26.22 | 47.50 | 51 |
| YDM4028B12G | B | 12 | 0.22 | 10000 | 12.19 | 15.51 | 41.80 | 51 |
| YDL4028B12G | B | 12 | 0.17 | 8000 | 9.75 | 9.93 | 36.96 | 51 |
| YDH4028B24G | B | 24 | 0.17 | 13000 | 15.85 | 26.22 | 47.50 | 51 |
| YDM4028B24G | B | 24 | 0.12 | 10000 | 12.19 | 15.51 | 41.80 | 51 |
| YDL4028B24G | B | 24 | 0.09 | 8000 | 9.75 | 9.93 | 36.96 | 51 |
DC4028G Extreme-Pressure 40mm Fan Advantages
DC4028G is engineered for the most resistance-heavy 40mm cooling paths, combining extreme pressure, high speed, and ball bearing durability.
Extreme 96.96mmH₂O Static Pressure
DC4028G reaches 96.96mmH₂O static pressure, making it suitable for highly restricted cooling paths where standard compact fans cannot move enough air.
25000RPM High-Speed Motor Range
The top-speed model reaches 25000RPM, giving DC4028G the airflow velocity needed for dense ducts, filters, and heat sinks.
30.48CFM Airflow with Deep-Frame Pressure
The fan combines large air volume with pressure-focused design, rather than relying only on open-space airflow.
Ball Bearing for Heavy-Duty Cooling
The ball bearing structure supports high-speed, high-load operation in demanding thermal environments.

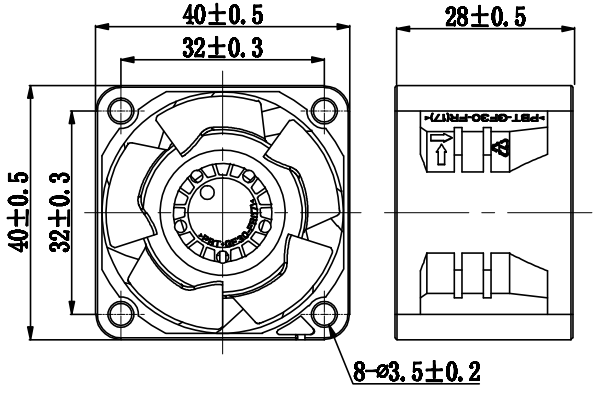

YCCFAN DC4028-G Product Overview
Understand the key design details of DC4028-G, including structure, material safety, performance range, and function options.
DC4028G is a 40×40×28mm extreme-pressure DC fan developed for the most demanding airflow resistance conditions in this product group. It is not meant for quiet general ventilation; it is designed to force air through difficult paths.
With 12V/24V models, ball bearing construction, optional control functions, and high-speed performance, DC4028G is suitable for compact high-power, high-density, or ducted cooling designs.

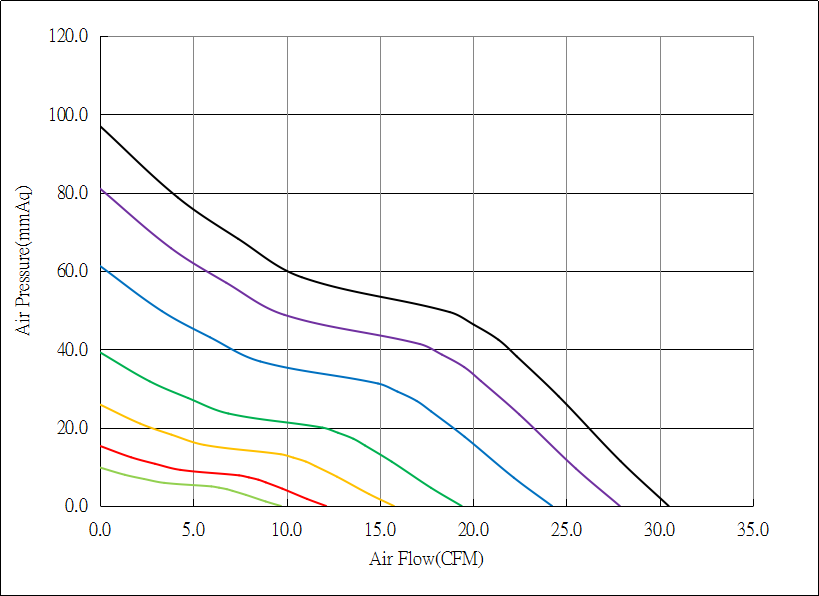

DC4028-G Airflow & Static Pressure Performance Curve
Use the DC4028-G P-Q curve to evaluate airflow and static pressure behavior across different speed levels and cooling resistance conditions.
DC4028G Applications for Extreme-Pressure Cooling
Designed for filters, dense heat sinks, ducts, grilles, and high-power compact systems where ordinary small DC fans cannot maintain airflow.
Get Cooling Support
High-Density Heat Sink Cooling
DC4028G can force airflow through dense fin stacks where lower-pressure fans lose performance quickly.
Filtered or Dust-Protected Systems
Its pressure capability helps maintain airflow through filters, dust covers, protective grilles, or mesh structures.
Server and High-Power Electronics
The fan can support compact high-power electronics where heat density is high and airflow must pass through tight internal spaces.
Ducted Forced-Air Cooling
DC4028G is suitable for directed airflow channels where air must travel through a fixed and resistant route.
Industrial and Telecom High-Load Systems
12V/24V versions make it suitable for industrial electronics, telecom modules, and high-load enclosed systems that require pressure-driven cooling.
DC 40×40×28mm Extreme-Pressure Fan Video Showcase
Watch DC4028G in operation to see its deep-frame structure, high-speed ball bearing design, and extreme pressure-focused airflow.
Watch DC4028G in operation to see its deep-frame structure, high-speed ball bearing design, and extreme pressure-focused airflow.
FAQs About DC4028-G DC Fan
A: DC4028-G is used for extreme-pressure cooling through filters, dense heat sinks, ducts, grilles, and high-power compact systems, where the fan size, airflow level, pressure behavior, and voltage options match compact electronic cooling requirements.
A: DC4028G is the extreme-pressure option, reaching 96.96mmH₂O static pressure and 25000RPM speed for airflow paths that are too restrictive for standard fans.
A: The available voltage options are 12VDC / 24VDC, allowing the fan to match different low-voltage or system-level power designs.
A: Yes. DC4028-G can support optional FG, RD, PWM, auto restart, and polarity protection functions depending on project requirements.
A: The fan uses glass fiber reinforced plastic with PBT UL94V-0 flame-retardant impeller and housing materials.
A: Yes. YCCFAN can support customization for DC4028-G, including voltage, speed, wire length, connector, bearing, control function, and application environment.
