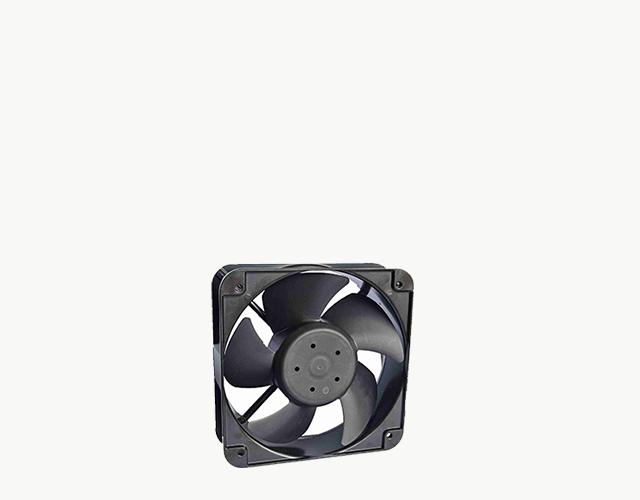

Product Description
Product Description
SIZE:200x200x60mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃to +70℃;
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection

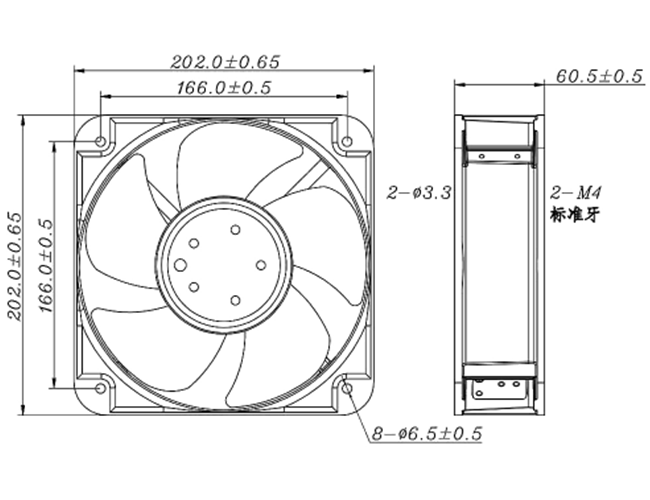

Dimensions Drawing
Dimensions Drawing

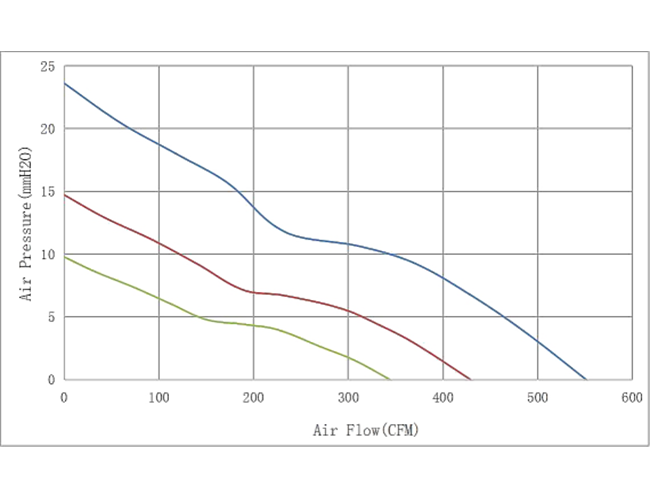

Characteristic Curves
Characteristic Curves
Specifications
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDH2060X24 | Two Ball | 24 | 2.5 | 3200 | 551.24 | 23.62 | 64.25 | 1000 |
| YDM2060X24 | Two Ball | 24 | 1.3 | 2500 | 429.22 | 14.72 | 57.85 | 1000 |
| YDL2060X24 | Two Ball | 24 | 0.8 | 2000 | 344.15 | 9.78 | 51.8 | 1000 |
| YDH2060X48 | Two Ball | 48 | 1.25 | 3200 | 551.24 | 23.62 | 64.25 | 1000 |
| YDM2060X48 | Two Ball | 48 | 0.7 | 2500 | 429.22 | 14.72 | 57.85 | 1000 |
| YDL2060X48 | Two Ball | 48 | 0.4 | 2000 | 344.15 | 9.78 | 51.8 | 1000 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
