DC8015 80x80x15 DC Fan
An 80mm fan with a 15mm nominal depth, available in 12V and 24V versions with three speed choices for each voltage.
The DC8015 gives equipment designers a choice of airflow within the same 80×80×15mm frame. Its six listed models run at 2,000, 3,000 or 4,000 RPM, with airflow from 23.23 to 46.47 CFM. Select the voltage that matches your power supply, then compare the speed, pressure and noise data for the intended installation.
Rated voltage: 12 VDC / 24 VDC
Size: 80×80×15mm
Airflow: 23.23–46.47 CFM
Static pressure: 1.14–4.55 mmH₂O
Speed: 2,000 / 3,000 / 4,000 RPM
DC8015 Specifications
Compare the six DC8015 models by supply voltage, speed, current, airflow, static pressure and noise.
| Model | Voltage （VDC） | Current （A） | Speed （RPM） | Airflow （CFM） | Pressure （mmH₂O） | Noise （dBA） | Weight （g） |
|---|---|---|---|---|---|---|---|
| YDH8015X12F | 12 VDC | 0.37 | 4,000 | 46.47 | 4.55 | 36.30 | 49 |
| YDM8015X12F | 12 VDC | 0.24 | 3,000 | 34.85 | 2.56 | 30.10 | 49 |
| YDL8015X12F | 12 VDC | 0.10 | 2,000 | 23.23 | 1.14 | 21.30 | 49 |
| YDH8015X24F | 24 VDC | 0.26 | 4,000 | 46.47 | 4.55 | 36.30 | 49 |
| YDM8015X24F | 24 VDC | 0.13 | 3,000 | 34.85 | 2.56 | 30.10 | 49 |
| YDL8015X24F | 24 VDC | 0.07 | 2,000 | 23.23 | 1.14 | 21.30 | 49 |
YCCFAN DC8015 Design and Selection Advantages
Choose the required airflow and supply voltage without changing the fan’s nominal 80×80×15mm frame size.
15mm Nominal Depth
The DC8015 provides an 80mm square mounting format with a nominal depth of 15mm. It is suitable for equipment that has room for an 80mm fan but limits the available installation depth.
Three Speed Levels
The 2,000, 3,000 and 4,000 RPM models provide different airflow and pressure levels, allowing designers to compare cooling performance and noise within the same frame size.
12V and 24V Versions
Each voltage has low, medium and high speed models. Projects using 12V or 24V power supplies can select the corresponding DC8015 version according to system requirements.
Bearing and Function Choices
The product catalog lists ball bearing and CycleSeal bearing choices, along with FG, RD, PWM, auto restart and polarity protection function options for different equipment requirements.
YCCFAN 12 Volt Dc Fan Product Overview
DC8015 is an 80×80×15mm DC fan designed for equipment requiring an 80mm mounting size with limited installation depth. It offers 12V and 24V options with three speed levels, helping designers balance airflow, static pressure and noise requirements for different applications.
Built with PBT UL94V-0 rated frame and impeller materials, DC8015 supports reliable operation for electronic equipment cooling. It provides ball bearing and CycleSeal bearing options, together with FG, RD, PWM, auto restart and polarity protection functions to meet different system configuration requirements.

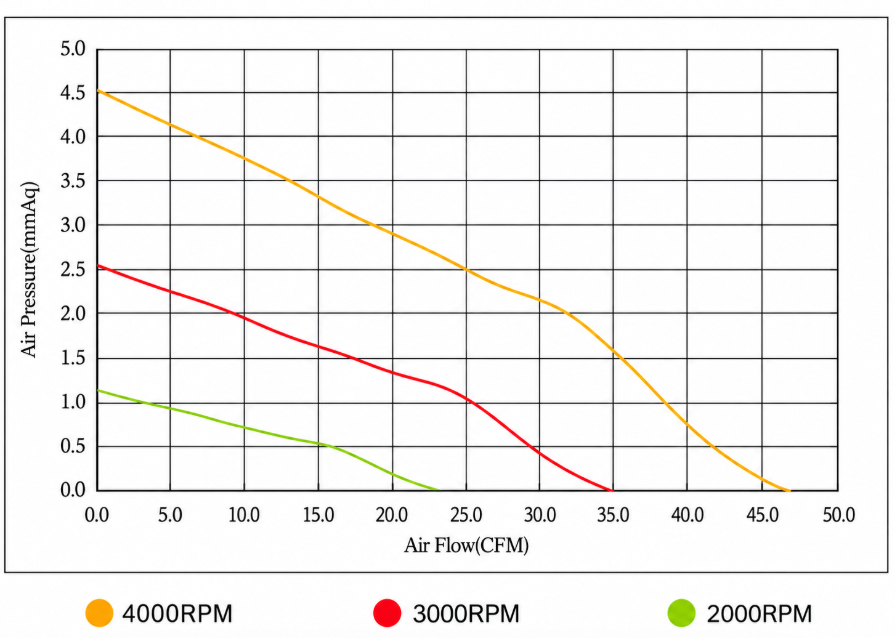

DC8015 Airflow & Static Pressure Performance Curve
Compare DC8015 airflow and static pressure performance across the 2,000, 3,000 and 4,000 RPM speed options to understand how each version performs under different airflow resistance conditions.
Applications in 80mm Compact Cooling Systems
Supporting cooling applications in electronic enclosures, power equipment, communication systems, and compact cabinets requiring an 80mm mounting size with limited installation depth.
Get Cooling Support
Electronic Enclosures
DC8015 can be evaluated for enclosures that accommodate its frame size. Check the inlet, outlet and internal airflow path, then select a speed using the enclosure’s cooling requirement.
Power and Control Equipment
The 12V and 24V options allow selection according to the equipment’s supply voltage. Compare current draw and performance for the exact model before finalizing the design.
Communication Equipment
Where the mounting space fits, the three performance curves provide a basis for comparing airflow at different resistance levels. Projects requiring fan monitoring can specify the relevant function option during inquiry.
Compact Cabinet Ventilation
For a cabinet with a matching mounting cutout and depth allowance, compare the DC8015 curve with the resistance of the complete ventilation path. Select the model based on system requirements rather than frame size alone.
Industrial Control Equipment
DC8015 supports industrial control equipment requiring stable airflow within compact enclosures. Different speed levels help designers select suitable airflow and pressure performance according to system cooling needs.
YCCFAN DC8015 80×80×15mm Fan Video Showcase
View the DC8015 frame and installation form in the product video.
DC8015 Selection & Specification FAQs

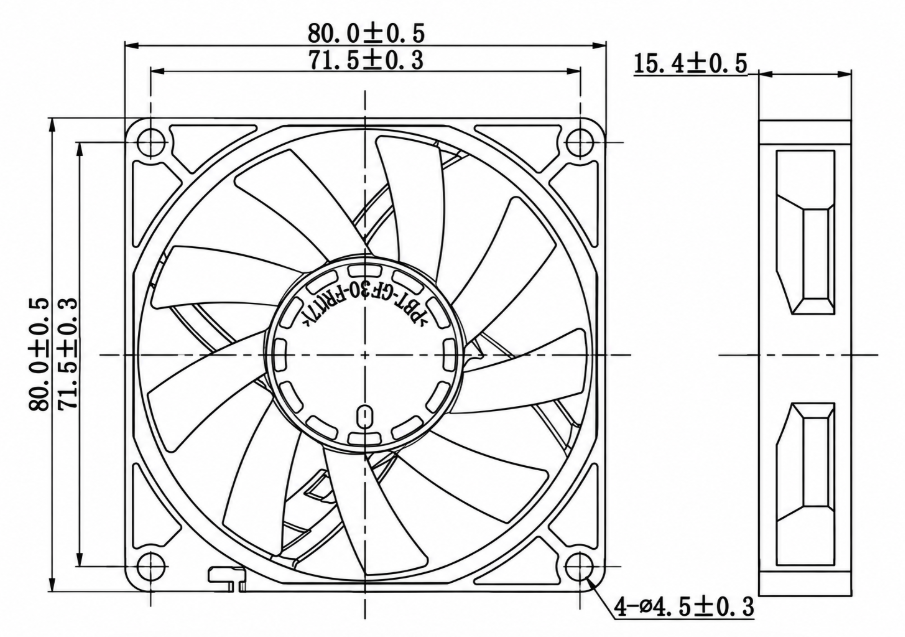

A: The nominal size is 80×80×15mm. Refer to the dimension drawing for detailed mounting measurements and tolerances.
A: The catalog lists 12 VDC and 24 VDC versions. Each voltage has 2,000, 3,000 and 4,000 RPM models.
A: YDH8015X12F and YDH8015X24F each list 46.47 CFM at 4,000 RPM. Their listed static pressure is 4.55 mmH₂O.
A: The two 2,000 RPM models list 21.30 dBA. Both provide 23.23 CFM airflow and 1.14 mmH₂O static pressure.
A: First confirm the supply voltage. Then compare the equipment’s airflow and pressure needs with the curve for each speed, along with the model’s current draw and noise.
A: PWM, FG and RD appear among the catalog’s function options. Include the required function and model in your inquiry to confirm the available configuration.
