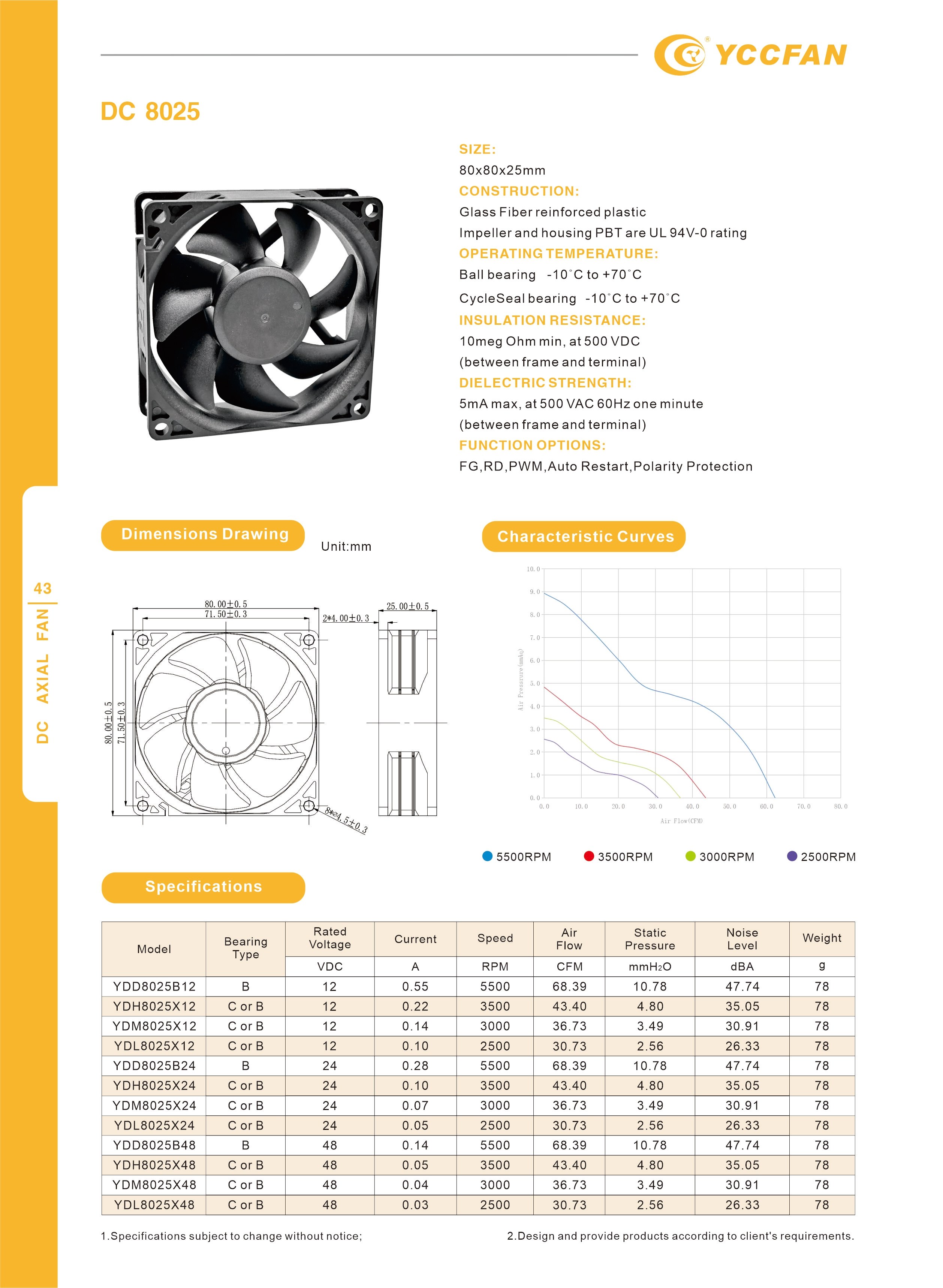

Product Description
Product Description
SIZE:80x80x25mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
Dimensions Drawing
Dimensions Drawing
Characteristic Curves
Characteristic Curves
Specifications
Specifications
| Model | Bearing Type | Rated voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDD8025X12 | C or B | 12 | 0.55 | 5500 | 68.39 | 10.78 | 47.74 | 78 |
| YDH8025X12 | C or B | 12 | 0.22 | 3500 | 43.40 | 4.80 | 35.05 | 78 |
| YDM8025X12 | C or B | 12 | 0.14 | 3000 | 36.73 | 3.49 | 30.91 | 78 |
| YDL8025X12 | C or B | 12 | 0.10 | 2500 | 30.73 | 2.56 | 26.33 | 78 |
| YDD8025X24 | C or B | 24 | 0.28 | 5500 | 68.39 | 10.78 | 47.74 | 78 |
| YDH8025X24 | C or B | 24 | 0.10 | 3500 | 43.40 | 4.80 | 35.05 | 78 |
| YDM8025X24 | C or B | 24 | 0.07 | 3000 | 36.73 | 3.49 | 30.91 | 78 |
| YDL8025X24 | C or B | 24 | 0.05 | 2500 | 30.73 | 2.56 | 26.33 | 78 |
| YDD8025X48 | C or B | 48 | 0.14 | 5500 | 68.39 | 10.78 | 47.74 | 78 |
| YDH8025X48 | C or B | 48 | 0.05 | 3500 | 43.40 | 4.80 | 35.05 | 78 |
| YDM8025X48 | C or B | 48 | 0.04 | 3000 | 36.73 | 3.49 | 30.91 | 78 |
| YDL8025X48 | C or B | 48 | 0.o3 | 2500 | 30.73 | 2.56 | 26.33 | 78 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
