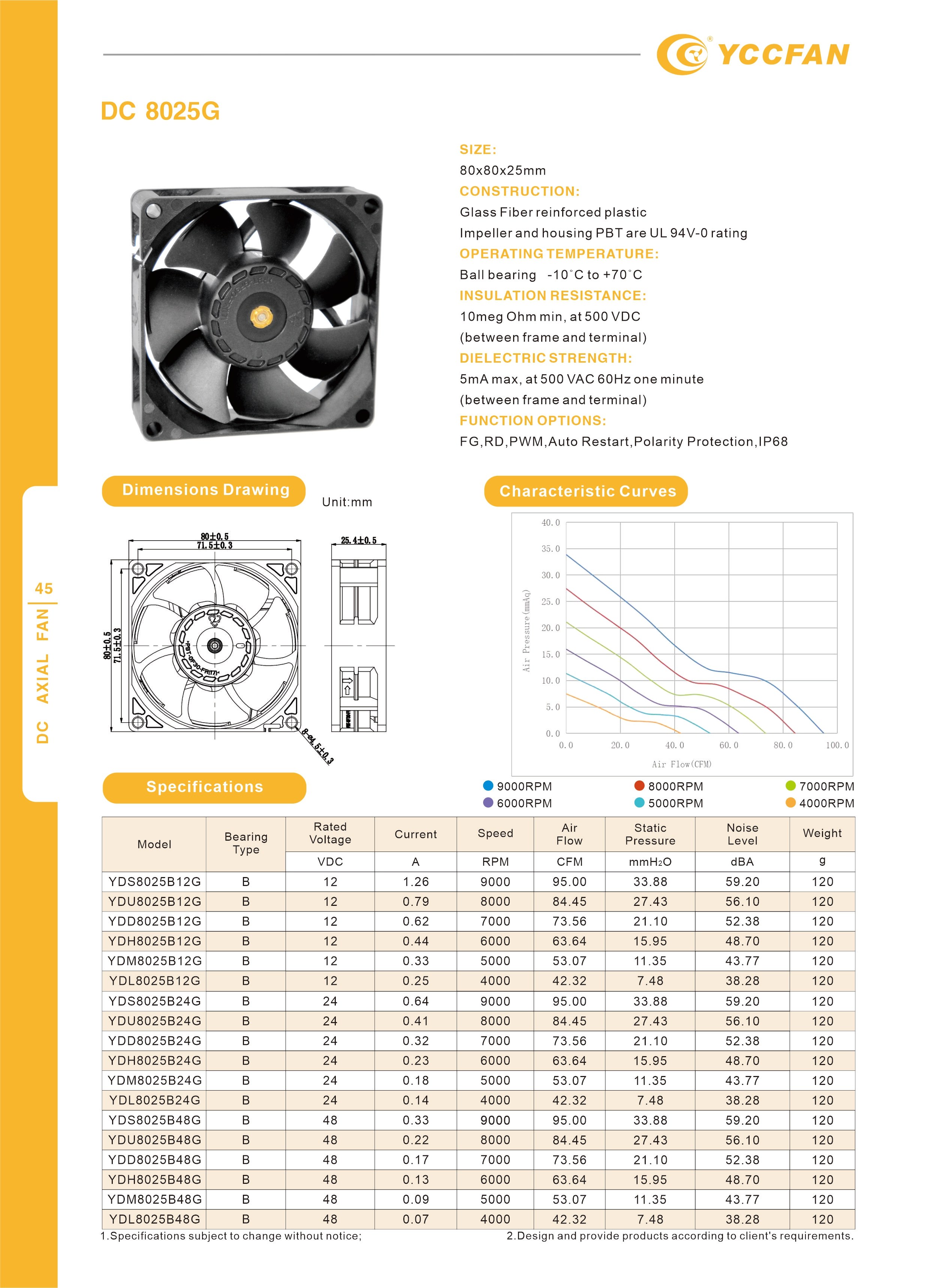

Product Description

Product Description

SIZE:80x80x25mm

CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating

OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃

INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)

DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)

FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection

Dimensions Drawing

Dimensions Drawing

Characteristic Curves

Characteristic Curves

Specifications

Specifications

ModelBearing
Type
Rated
Voltage
CurrentSpeedAir
Flow
static
Pressure
Noise
Level
Weight
VDCARPMCFMmmH₂OdBAg
YDS8025x12GB121.26900095.0033.8859.20120
YDU8025×12GB120.79800084.4527.4356.10120
YDD8025x12GB120.62700073.5621.1052.38120
YDH8025×12GB120.44600063.6415.9548.70120
YDM8025×12GB120.33500053.0711.3543.77120
YDL8025×12GB120.25400042.327.4838.28120
YDS8025x24GB240.64900095.0033.8859.20120
YDU8025x24GB240.41800084.4527.4356.10120
YDD8025x24GB240.32700073.5621.1052.38120
YDH8025×24GB240.23600063.6415.9548.70120
YDM8025x24GB240.18500053.0711.3543.77120
YDL8025×24GB240.14400042.327.4838.28120
YDS8025x48GB480.33900095.0033.8859.20120
YDU8025x48GB480.22800084.4527.4356.10120
YDD8025x48GB480.17700073.5621.1052.38120
YDH8025x48GB480.13600063.6415.9548.70120
YDM8025x48GB480.09500053.0711.3543.77120
YDL8025x48GB480.07400042.327.4838.28120

1.Specifications subject to change without notiec;

2.Design and provide products according to client’s requirements.
