Product Description
Product Description
SIZE:40x40x10mm
CONSTRUCTION:Glass Fiber reinforced plastic Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;CycleSeal bearing -10℃ to +70℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection

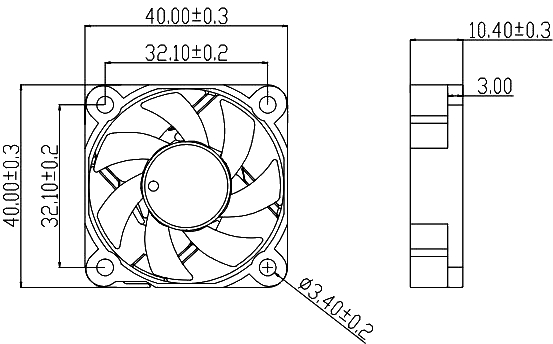

Dimensions Drawing
Dimensions Drawing

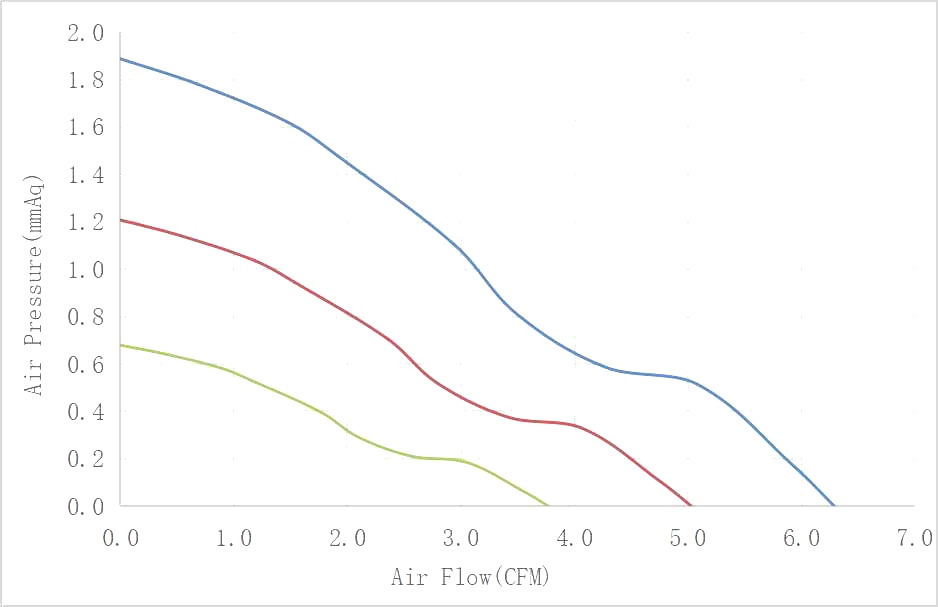

Characteristic Curves
Characteristic Curves
Specifications
Specifications
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level | Weight |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | ||
| YDH4010X05F | C or B | 5 | 0.13 | 8000 | 8.80 | 5.39 | 31.10 | 27 |
| YDM4010X05F | C or B | 5 | 0.10 | 6500 | 7.15 | 3.56 | 26.60 | 27 |
| YDL4010X05F | C or B | 5 | 0.06 | 5000 | 5.50 | 2.10 | 20.90 | 27 |
| YDH4010X12F | C or B | 12 | 0.06 | 8000 | 8.80 | 5.39 | 31.10 | 27 |
| YDM4010X12F | C or B | 12 | 0.04 | 6500 | 7.15 | 3.56 | 26.60 | 27 |
| YDL4010X12F | C or B | 12 | 0.03 | 5000 | 5.50 | 2.10 | 20.90 | 27 |
| YDH4010X24F | C or B | 24 | 0.03 | 8000 | 8.80 | 5.39 | 31.10 | 27 |
| YDM4010X24F | C or B | 24 | 0.02 | 6500 | 7.15 | 3.56 | 26.60 | 27 |
| YDL4010X24F | C or B | 24 | 0.01 | 5000 | 5.50 | 2.10 | 20.90 | 27 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
