DC4020F 40×40×20mm High-Airflow DC Cooling Fan
A 40mm fan with deeper 20mm structure and broad speed range, designed for compact systems that need higher airflow and multi-voltage flexibility.
DC4020F increases the frame depth to 20mm and offers multiple speed levels from low-noise airflow to high-output cooling. It is suitable when a 10mm or 15mm 40mm fan does not provide enough cooling capacity.
Rated Voltage: 5VDC / 12VDC / 24VDC
Size: 40×40×20mm
Max Airflow: 13.76CFM / 0.390m³/min
Max Static Pressure: 13.89mmH₂O / 136.2Pa
Rated Speed: Up to 11000RPM
Key Specifications of DC4020-F DC Fan
Compare DC4020-F models by voltage, bearing, speed, airflow, pressure, current, noise, and weight to choose the right DC cooling fan for your design.
| Model | Bearing Type | Rate Voltage（VDC） | Current （A） | Speed （RPM） | Air Flow （CFM） | Static Pressure （mmH₂O） | Noise Level （dBA） | Weight （g） |
|---|---|---|---|---|---|---|---|---|
| YDD4020X05F | C or B | 5 | 0.30 | 9500 | 11.88 | 10.36 | 34.20 | 26 |
| YDH4020X05F | C or B | 5 | 0.24 | 7500 | 9.38 | 6.46 | 30.60 | 26 |
| YDM4020X05F | C or B | 5 | 0.16 | 5500 | 6.88 | 3.47 | 21.20 | 26 |
| YDL4020X05F | C or B | 5 | 0.08 | 3500 | 4.38 | 1.41 | 11.40 | 26 |
| YDU4020X12F | C or B | 12 | 0.18 | 11000 | 13.76 | 13.89 | 38.10 | 26 |
| YDD4020X12F | C or B | 12 | 0.14 | 9500 | 11.88 | 10.36 | 34.20 | 26 |
| YDH4020X12F | C or B | 12 | 0.10 | 7500 | 9.38 | 6.46 | 30.60 | 26 |
| YDM4020X12F | C or B | 12 | 0.06 | 5500 | 6.88 | 3.47 | 21.20 | 26 |
| YDL4020X12F | C or B | 12 | 0.04 | 3500 | 4.38 | 1.41 | 11.40 | 26 |
| YDU4020X24F | C or B | 24 | 0.09 | 11000 | 13.76 | 13.89 | 38.10 | 26 |
| YDD4020X24F | C or B | 24 | 0.07 | 9500 | 11.88 | 10.36 | 34.20 | 26 |
| YDH4020X24F | C or B | 24 | 0.05 | 7500 | 9.38 | 6.46 | 30.60 | 26 |
| YDM4020X24F | C or B | 24 | 0.03 | 5500 | 6.88 | 3.47 | 21.20 | 26 |
| YDL4020X24F | C or B | 24 | 0.02 | 3500 | 4.38 | 1.41 | 11.40 | 26 |
DC4020F High-Airflow 40mm Fan Advantages
DC4020F combines a 20mm frame depth, broad speed choices, and multi-voltage support for compact systems with higher airflow demand.
20mm Deep Frame for Stronger Cooling
The deeper 40×40×20mm body gives DC4020F more airflow capacity than shallower 40mm fans while keeping the same face size.
Wide Speed Range from 3500 to 11000RPM
Multiple speed levels allow engineers to choose between low-noise operation, mid-range airflow, and higher-output cooling within one fan series.
13.76CFM Airflow and 13.89mmH₂O Pressure
The high-speed versions support both air volume and pressure, making DC4020F useful for compact systems with moderate-to-high airflow resistance.
C/B Bearings and Multi-Voltage Options
C/B bearing choices and 5V/12V/24V models make DC4020F adaptable to many compact electronics and power architectures.

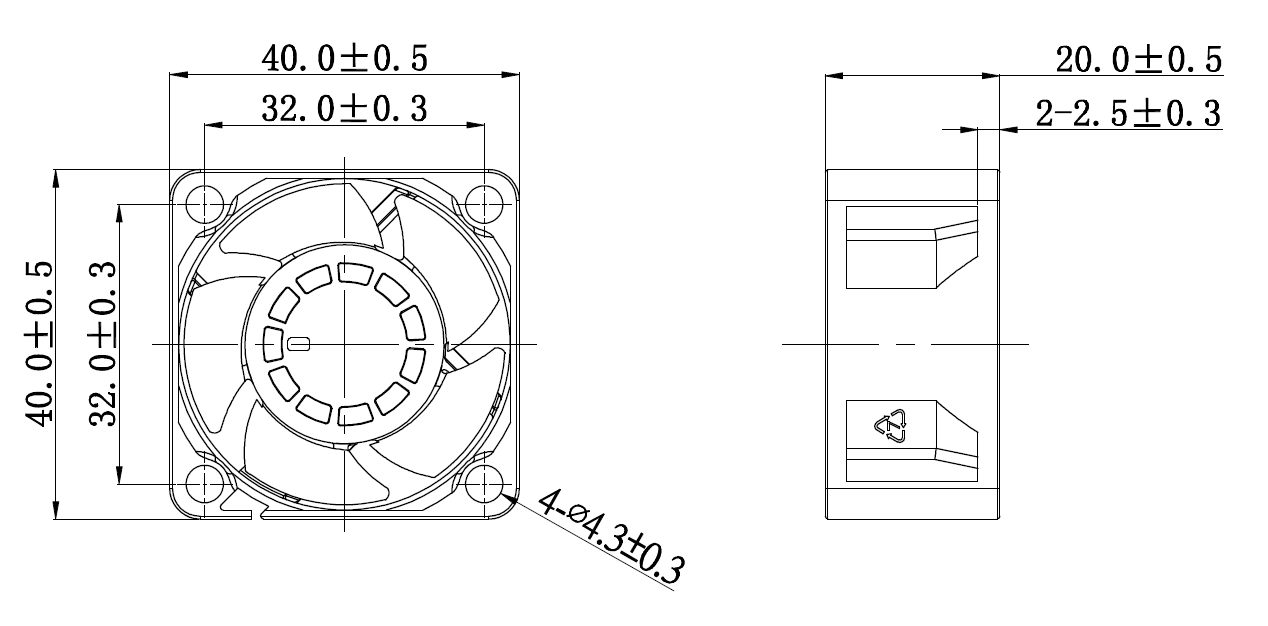

YCCFAN DC4020-F Product Overview
Understand the key design details of DC4020-F, including structure, material safety, performance range, and function options.
DC4020F is a deeper 40mm DC cooling fan designed for products that need more cooling capacity than 10mm or 15mm compact fans. The 20mm frame allows stronger airflow generation and better pressure support.
The fan uses glass fiber reinforced plastic and PBT UL94V-0 materials, with C/B bearing options and optional FG, RD, PWM, auto restart, and polarity protection for flexible system integration.

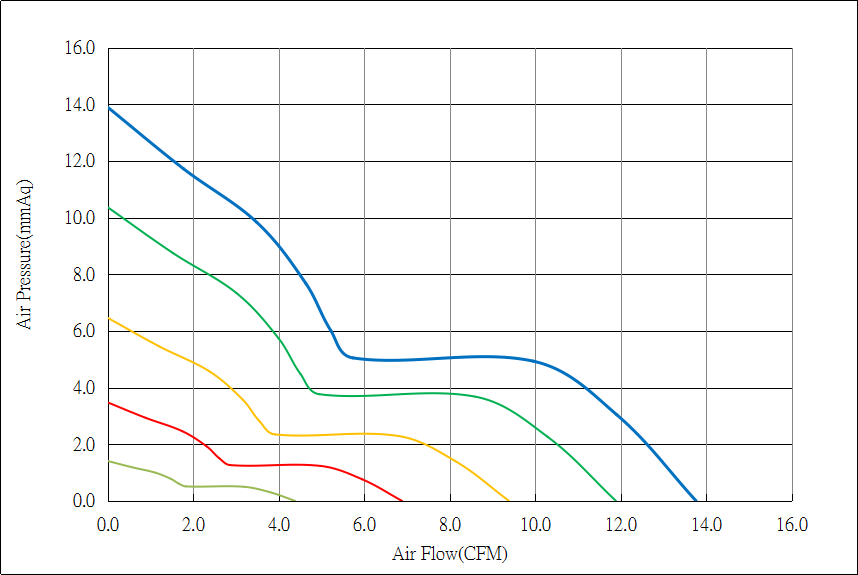

DC4020-F Airflow & Static Pressure Performance Curve
Use the DC4020-F P-Q curve to evaluate airflow and static pressure behavior across different speed levels and cooling resistance conditions.
DC4020F Applications for Higher-Load Compact Cooling
Designed for compact systems that need stronger airflow and pressure support than thinner 40mm fans while still using a 40mm footprint.
Get Cooling Support
Higher-Load Compact Electronics
DC4020F is suitable when compact electronics need more airflow than thinner 40mm fans can provide.
Power Supply and Converter Cooling
The higher airflow and pressure support can help cool power supplies, DC converters, and driver modules with concentrated heat.
Compact Industrial Control Units
5V/12V/24V models and control functions make DC4020F suitable for compact control units with different power architectures.
Moderate-Resistance Air Paths
With up to 13.89mmH₂O pressure, DC4020F can support vents, compact ducts, and denser layouts that need pressure assistance.
Low-Noise to High-Output Configurations
The broad speed range allows selection for quiet baseline airflow or stronger cooling when thermal load increases.
DC 40×40×20mm Cooling Fan Video Showcase
Watch DC4020F in operation to see its 20mm deep frame, wider speed range, and stronger 40mm airflow performance.
Watch DC4020F in operation to see its 20mm deep frame, wider speed range, and stronger 40mm airflow performance.
FAQs About DC4020-F DC Fan
A: DC4020-F is used for higher-load compact electronics, power modules, converters, and moderate-resistance airflow paths, where the fan size, airflow level, pressure behavior, and voltage options match compact electronic cooling requirements.
A: DC4020F is different from shallower 40mm fans because its 20mm frame supports higher airflow and stronger pressure across a wider speed range.
A: The available voltage options are 5VDC / 12VDC / 24VDC, allowing the fan to match different low-voltage or system-level power designs.
A: Yes. DC4020-F can support optional FG, RD, PWM, auto restart, and polarity protection functions depending on project requirements.
A: The fan uses glass fiber reinforced plastic with PBT UL94V-0 flame-retardant impeller and housing materials.
A: Yes. YCCFAN can support customization for DC4020-F, including voltage, speed, wire length, connector, bearing, control function, and application environment.
