DC4510 45×45×10mm Multi-Voltage Cooling Fan
A 45mm DC cooling fan with 5V, 12V, and 24V options, designed for compact devices that need flexible power matching and steady airflow.
DC4510 bridges small 40mm fans and larger 50mm models, offering a compact 10mm depth with enough airflow coverage for small electronics, control units, and communication devices.
Rated Voltage: 5VDC / 12VDC / 24VDC
Size: 45×45×10mm
Max Airflow: 10.73CFM / 0.304m³/min
Max Static Pressure: 6.18mmH₂O / 60.6Pa
Rated Speed: Up to 8000RPM
Key Specifications of DC4510 DC Fan
Compare DC4510 models by voltage, speed, airflow, pressure, current, and noise to select a compact 45mm cooling fan for different system voltages.
| Model | Bearing Type | Rate Voltage（VDC） | Current （A） | Speed （RPM） | Air Flow （CFM） | Static Pressure （mmH₂O） | Noise Level （dBA） | Weight （g） |
|---|---|---|---|---|---|---|---|---|
| YDH4510X05 | S or B | 5 | 0.37 | 8000 | 10.73 | 6.18 | 40.80 | 14 |
| YDM4510X05 | S or B | 5 | 0.16 | 6000 | 8.05 | 3.48 | 34.60 | 14 |
| YDL4510X05 | S or B | 5 | 0.05 | 4000 | 5.37 | 1.54 | 25.70 | 14 |
| YDH4510X12 | S or B | 12 | 0.12 | 8000 | 10.73 | 6.18 | 40.80 | 14 |
| YDM4510X12 | S or B | 12 | 0.06 | 6000 | 8.05 | 3.48 | 34.60 | 14 |
| YDL4510X12 | S or B | 12 | 0.03 | 4000 | 5.37 | 1.54 | 25.70 | 14 |
| YDH4510X24 | S or B | 24 | 0.06 | 8000 | 10.73 | 6.18 | 40.80 | 14 |
| YDM4510X24 | S or B | 24 | 0.04 | 6000 | 8.05 | 3.48 | 34.60 | 14 |
| YDL4510X24 | S or B | 24 | 0.03 | 4000 | 5.37 | 1.54 | 25.70 | 14 |
DC4510 Multi-Voltage 45mm Fan Advantages
DC4510 provides a practical 45mm size with three voltage platforms, making it useful when compact cooling must match different electrical designs.
45mm Size Between 40mm and 50mm Fans
The 45×45×10mm frame gives DC4510 more airflow area than 40mm fans while remaining smaller than 50mm designs.
5V / 12V / 24V Voltage Options
Multiple voltage versions make DC4510 easier to match electronic devices, industrial controls, and communication power systems.
Balanced Airflow and Pressure
Up to 10.73CFM airflow and 6.18mmH₂O pressure provide a balanced cooling profile for compact systems.
S or B Bearing Flexibility
S or B bearing options allow engineers to select based on operating life, cost, and use conditions.

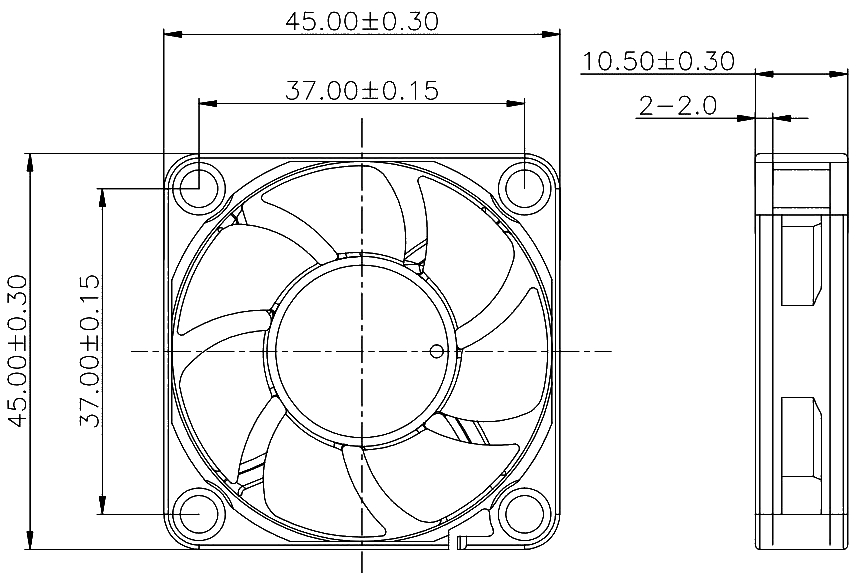

YCCFAN DC4510 Product Overview
See how DC4510 combines a 45mm frame, multi-voltage coverage, bearing flexibility, and optional control functions for compact cooling projects.
DC4510 is a 45×45×10mm DC fan designed for products that need more airflow than smaller 40mm fans, but still cannot use a larger 50mm structure. This makes it suitable for compact layouts with moderate thermal demand.
With 5V, 12V, and 24V versions, S/B bearing options, PBT UL94V-0 materials, and optional FG, RD, PWM, auto restart, and polarity protection, DC4510 can support both standard and customized small-device cooling designs.

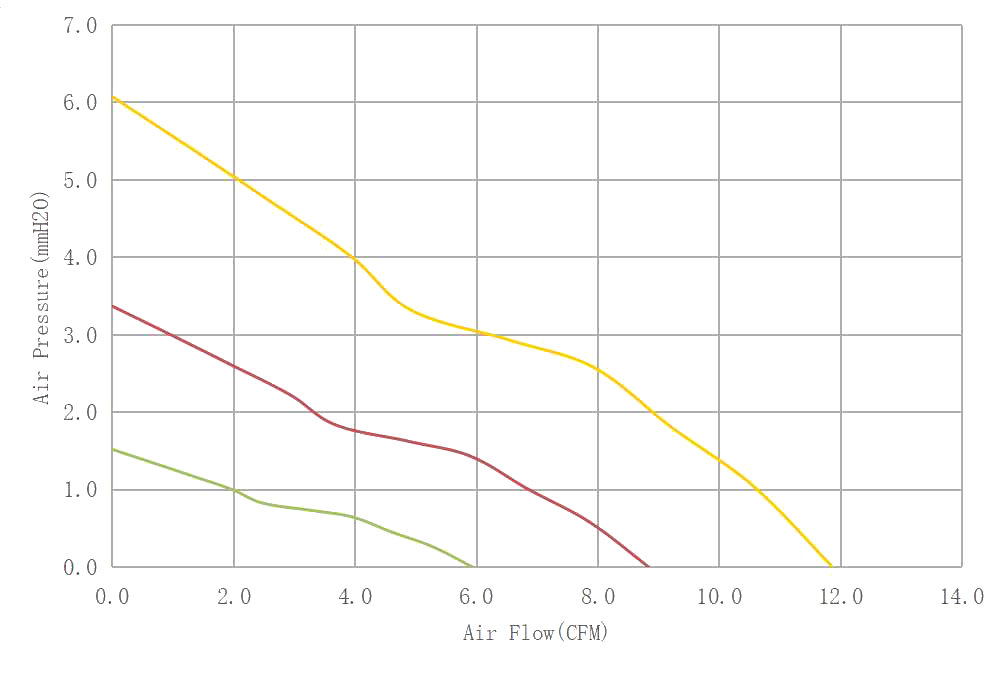

DC4510 Airflow & Static Pressure Performance Curve
Use the DC4510 P-Q curve to evaluate how each voltage and speed level balances airflow, pressure, and noise in a compact 45mm fan size.
DC4510 Applications for Multi-Voltage 45mm Cooling
Suitable for compact devices that need a mid-size fan footprint, flexible voltage selection, and stable airflow rather than extreme pressure output.
Get Cooling Support
Compact Control Units
DC4510 can cool small controllers, control boxes, and embedded electronic units that need stable airflow in limited space.
Communication and Signal Devices
Its 12V/24V options help match communication modules, signal terminals, and network devices with different power systems.
Small Power Electronics
The balanced airflow and pressure can support DC converters, LED drivers, and compact power sections.
Portable or Modular Equipment
The 45mm frame is useful when a design needs more airflow area than 40mm fans but must avoid a larger 50mm installation.
OEM Cooling Designs
Voltage, bearing, wire, connector, and control options make DC4510 suitable for OEM thermal projects with defined electrical requirements.
DC 45×45×10mm Cooling Fan Video Showcase
Watch DC4510 in operation to see its 45mm compact frame, smooth running behavior, and airflow performance for multi-voltage cooling designs.
Watch DC4510 in operation to see its 45mm compact frame, smooth running behavior, and airflow performance for multi-voltage cooling designs.
FAQs About DC4510 DC Fan
A: The DC4510 DC cooling fan is used for compact electronic systems that need the airflow, pressure, voltage, and control characteristics shown in its specifications.
A: DC4510 is different because of its 45×45×10mm structure and performance balance, allowing it to serve cooling layouts that smaller or thinner fans may not handle effectively.
A: DC4510 is available with 5VDC / 12VDC / 24VDC options, allowing engineers to match different product power systems.
A: The maximum airflow is 10.73CFM / 0.304m³/min, and the maximum static pressure is 6.18mmH₂O / 60.6Pa, based on the listed high-performance model.
A: Yes. DC4510 can support FG, RD, PWM, Auto Restart, Polarity Protection, depending on project requirements and selected configuration.
A: Yes. YCCFAN can support OEM/ODM customization for DC4510, including voltage, speed, wire length, connector, bearing, airflow, and control functions.
