DC5010 50×50×10mm Thin DC Cooling Fan
A 50mm DC cooling fan for low-depth equipment, combining wide airflow coverage, multi-voltage support, and C/B bearing flexibility.
DC5010 is a slim 50mm fan that expands airflow coverage without moving to a 15mm or 20mm frame, making it suitable for shallow electronic enclosures.
Rated Voltage: 5VDC / 12VDC / 24VDC
Size: 50×50×10mm
Max Airflow: 15.04CFM / 0.426m³/min
Max Static Pressure: 5.17mmH₂O / 50.7Pa
Rated Speed: Up to 7000RPM

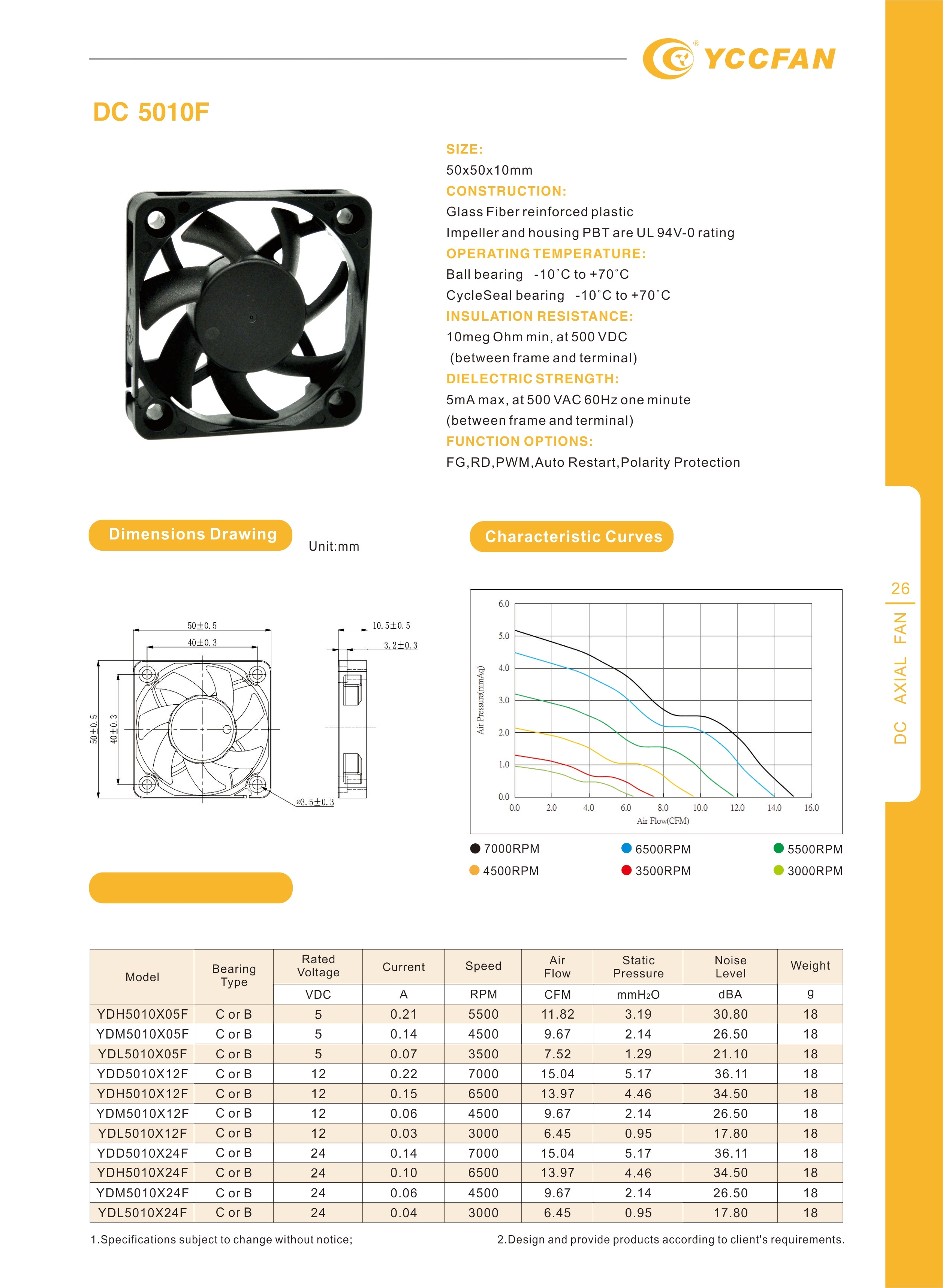

Key Specifications of DC5010 DC Fan
Compare DC5010 models by voltage, bearing, speed, airflow, pressure, current, noise, and weight to choose the right DC cooling fan for your design.
| Model | Bearing Type | Rate Voltage（VDC） | Current （A） | Speed （RPM） | Air Flow （CFM） | Static Pressure （mmH₂O） | Noise Level （dBA） | Weight （g） |
|---|---|---|---|---|---|---|---|---|
| YDH5010X05F | C or B | 5 | 0.21 | 5500 | 11.82 | 3.19 | 30.80 | 18 |
| YDM5010X05F | C or B | 5 | 0.14 | 4500 | 9.67 | 2.14 | 26.50 | 18 |
| YDL5010X05F | C or B | 5 | 0.07 | 3500 | 7.52 | 1.29 | 21.10 | 18 |
| YDD5010X12F | C or B | 12 | 0.22 | 7000 | 15.04 | 5.17 | 36.11 | 18 |
| YDH5010X12F | C or B | 12 | 0.15 | 6500 | 13.97 | 4.46 | 34.50 | 18 |
| YDL5010X24F | C or B | 24 | 0.04 | 3000 | 6.45 | 0.95 | 17.80 | 18 |
DC5010 Slim 50mm Cooling Fan Advantages
DC5010 focuses on wide airflow in a 10mm profile, helping compact devices gain more cooling area without a deeper mechanical design.
50mm Wide Airflow Face
The 50×50mm frame gives DC5010 broader airflow coverage than 45mm or smaller fans while keeping a thin 10mm depth.
Low-Profile 10mm Installation
The 10mm frame supports slim equipment designs where thicker fans would interfere with internal spacing.
Multi-Voltage Platform
5V, 12V, and 24V models allow DC5010 to fit consumer electronics, control systems, and industrial modules.
C/B Bearing Selection
C or B bearing options give engineers more flexibility for lifetime, cost, and operating conditions.

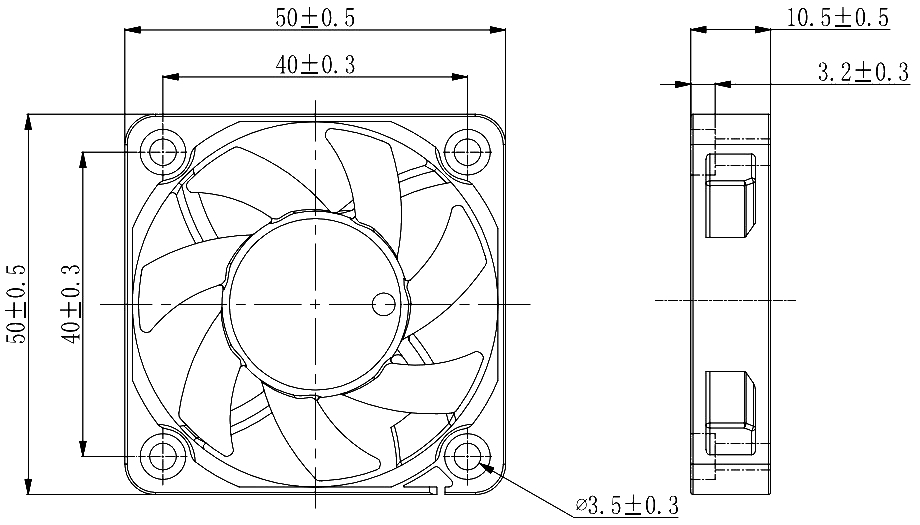

YCCFAN DC5010 Product Overview
Learn how DC5010 combines a 50mm airflow face, 10mm slim frame, multi-voltage support, and flame-retardant materials for shallow device cooling.
DC5010 is a 50×50×10mm DC fan developed for electronic devices that need wider cooling coverage but must keep fan height low. It is especially useful when smaller fans cannot distribute air across enough internal area.
The fan uses PBT UL94V-0 materials and supports optional FG, RD, PWM, auto restart, and polarity protection. With C/B bearing options and multiple voltage levels, DC5010 can serve different compact cooling platforms.

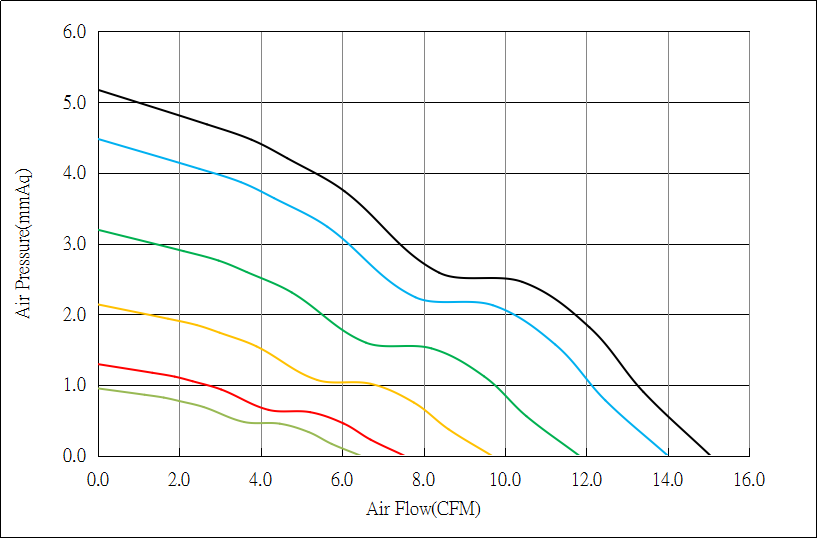

DC5010 Airflow & Static Pressure Performance Curve
Use the DC5010 P-Q curve to evaluate how the slim 50mm fan balances airflow coverage, pressure output, and noise across voltage and speed options.
DC5010 Applications for Slim 50mm Cooling
DC5010 is suitable for shallow electronic devices that need wider airflow coverage across larger heat areas while keeping the fan depth limited to a slim 10mm structure.
Get Cooling Support
Thin Electronic Enclosures
DC5010 fits slim product housings where internal height is limited but a wider airflow path is still required. Its 50×50×10mm structure allows the fan to cover more internal space than smaller models, making it suitable for shallow enclosures that cannot use deeper cooling fans.
Wide PCB Cooling Zones
For PCB layouts where heat is distributed across multiple components rather than concentrated in one point, the 50mm fan face helps spread airflow across chips, regulators, drivers, and surrounding board-level heat sources. This makes DC5010 useful for broader board cooling in compact devices.
Small Power Devices
DC5010 can support LED drivers, DC converters, compact power modules, and small power supply units where heat spreads across a shallow internal area. Its slim frame helps maintain mechanical clearance while providing enough airflow to assist heat dissipation around power components.
Control Panels and Interface Devices
Control panels, display terminals, and user-interface devices often have limited internal clearance but need stable airflow behind screens, boards, or control circuits. DC5010 provides a larger airflow area in a slim format, making it suitable for panel-type products that require quiet and space-efficient cooling.
Compact Communication Products
DC5010 can be used in routers, network terminals, communication modules, and compact signal devices where internal heat is generated by chips, power sections, and interface components. Its multi-voltage model options help match different system power designs while maintaining slim installation.
DC 50×50×10mm Cooling Fan Video Showcase
Watch DC5010 in operation to see its thin 50mm frame, broad airflow face, and compact cooling performance.
Watch DC5010 in operation to see its thin 50mm frame, broad airflow face, and compact cooling performance.
FAQs About DC5010 DC Fan
A: The DC5010 DC cooling fan is used for compact electronic systems that need the airflow, pressure, voltage, and control characteristics shown in its specifications.
A: DC5010 is different because of its 50×50×10mm structure and performance balance, allowing it to serve cooling layouts that smaller or thinner fans may not handle effectively.
A: DC5010 is available with 5VDC / 12VDC / 24VDC options, allowing engineers to match different product power systems.
A: The maximum airflow is 15.04CFM / 0.426m³/min, and the maximum static pressure is 5.17mmH₂O / 50.7Pa, based on the listed high-performance model.
A: Yes. DC5010 can support FG, RD, PWM, Auto Restart, Polarity Protection, depending on project requirements and selected configuration.
A: Yes. YCCFAN can support OEM/ODM customization for DC5010, including voltage, speed, wire length, connector, bearing, airflow, and control functions.
