DC5015 50×50×15mm High-Airflow DC Fan
A 15mm deep 50mm DC fan designed for stronger airflow and pressure than slim 10mm models while keeping a compact footprint.
DC5015 provides more cooling capacity than thin 50mm fans, making it suitable for compact devices that can accept additional depth for stronger thermal performance.
Rated Voltage: 5VDC / 12VDC / 24VDC
Size: 50×50×15mm
Max Airflow: 19.46CFM / 0.551m³/min
Max Static Pressure: 8.05mmH₂O / 78.9Pa
Rated Speed: Up to 7500RPM
Key Specifications of DC5015 DC Fan
Compare DC5015 models by voltage, bearing, speed, airflow, pressure, current, noise, and weight to choose the right DC cooling fan for your design.
| Model | Bearing Type | Rate Voltage（VDC） | Current （A） | Speed （RPM） | Air Flow （CFM） | Static Pressure （mmH₂O） | Noise Level （dBA） | Weight （g） |
|---|---|---|---|---|---|---|---|---|
| YDH5015X05F | C or B | 5 | 0.20 | 6000 | 15.57 | 5.15 | 37.40 | 30 |
| YDM5015X05F | C or B | 5 | 0.15 | 4500 | 11.67 | 2.90 | 31.20 | 30 |
| YDL5015X05F | C or B | 5 | 0.05 | 3000 | 7.78 | 1.28 | 22.40 | 30 |
| YDD5015X12F | C or B | 12 | 0.16 | 7500 | 19.46 | 8.05 | 42.30 | 30 |
| YDH5015X12F | C or B | 12 | 0.09 | 6000 | 15.57 | 5.15 | 37.40 | 30 |
| YDH5015X24F | C or B | 24 | 0.09 | 7500 | 19.46 | 8.05 | 42.30 | 30 |
DC5015 Deeper 50mm Cooling Fan Advantages
DC5015 uses a 15mm frame to move beyond slim-fan airflow limits, offering stronger cooling while retaining 50mm installation compatibility.
15mm Frame for More Cooling Headroom
The deeper 50×50×15mm structure gives DC5015 more internal fan space than 10mm versions.
Up to 19.46CFM Airflow
The higher airflow output makes DC5015 useful when slim 50mm fans cannot remove heat fast enough.
Improved Pressure Support
Up to 8.05mmH₂O pressure helps airflow pass through denser internal components and moderate vents.
Configurable Bearings and Controls
C/B bearings and optional FG, RD, PWM, auto restart, and polarity protection support customized cooling needs.

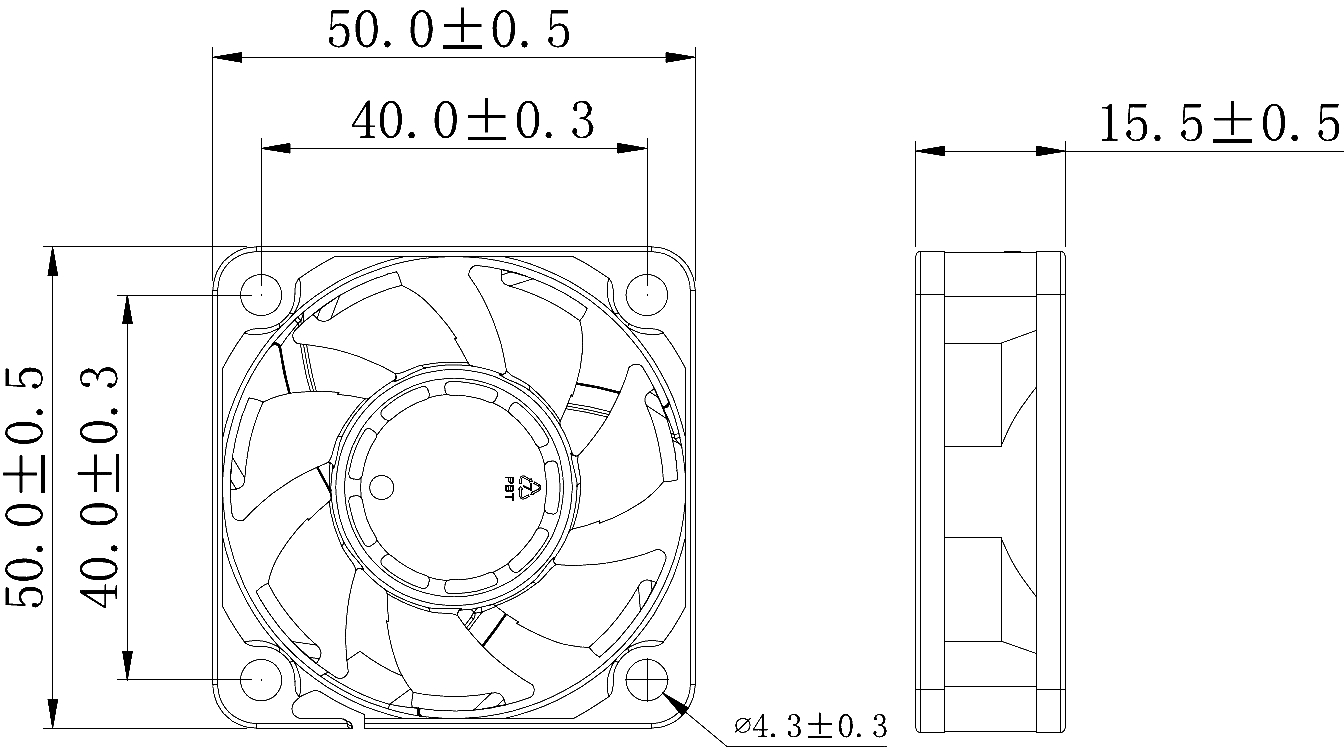

YCCFAN DC5015 Product Overview
Explore how DC5015 uses a 15mm frame depth to improve airflow and pressure performance over slim 50mm fan designs.
DC5015 is a 50×50×15mm DC cooling fan for designs where a 10mm fan is not enough but a larger footprint is not available. It increases depth instead of width to improve cooling capacity.
With multi-voltage support, PBT UL94V-0 materials, C/B bearing options, and control/protection functions, DC5015 can be used in compact devices that need stronger and more stable airflow.

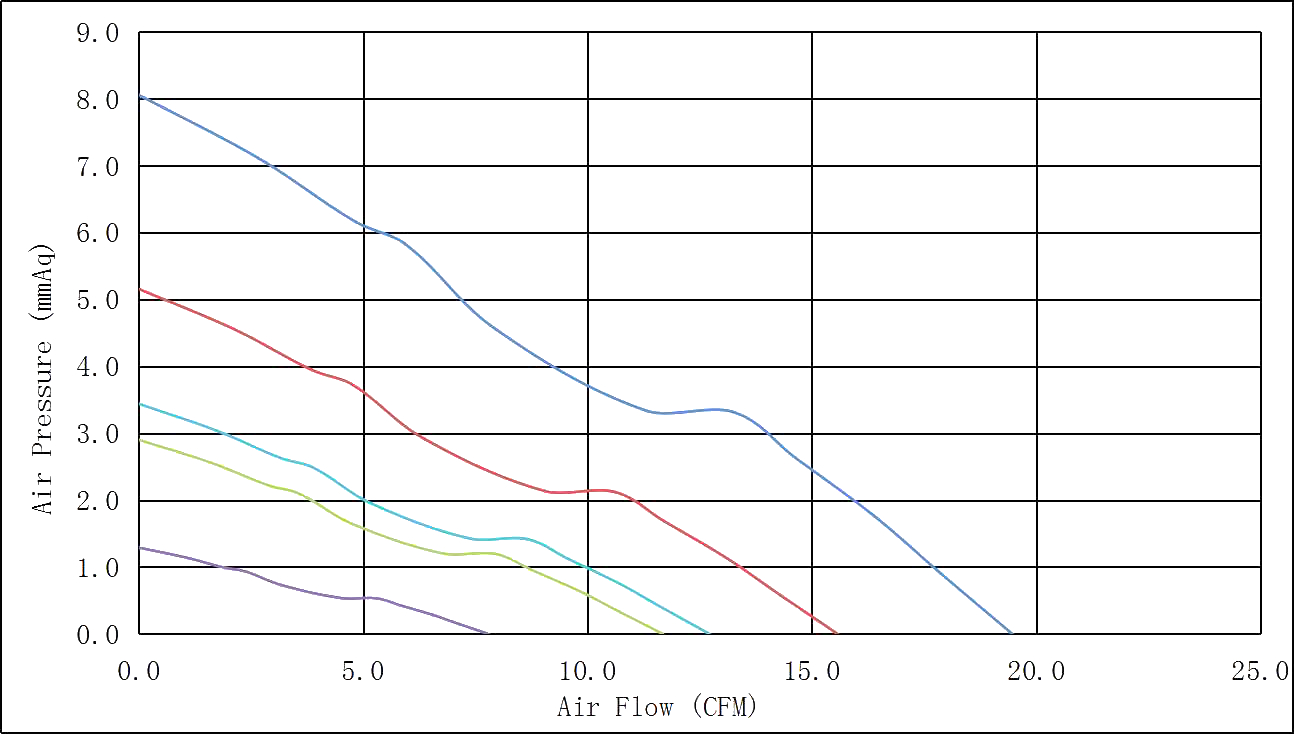

DC5015 Airflow & Static Pressure Performance Curve
Use the DC5015 P-Q curve to compare airflow and pressure output across speed levels and identify the right model for moderate-resistance cooling structures.
DC5015 Applications for Deeper 50mm Cooling
DC5015 is ideal for compact equipment that needs stronger airflow, improved pressure support, and better cooling stability than standard 10mm 50mm fans can provide.
Get Cooling Support
Compact Power Modules
DC5015 can be used in compact power modules, adapters, converters, and small power supply units where heat is concentrated around transformers, MOSFETs, capacitors, or power ICs. Its deeper 15mm frame helps deliver stronger active airflow to improve heat removal in limited internal space.
Small Industrial Electronics
For compact industrial controllers, automation modules, sensor units, and embedded electronic equipment, DC5015 can provide stable cooling under continuous operation. Its multi-voltage options make it easier to match different industrial power platforms and equipment designs.
Higher-Density PCB Layouts
DC5015 is suitable for PCB layouts where components are placed closely together and airflow paths are partially blocked by heat sinks, connectors, or tall components. Compared with thinner 50mm fans, its added depth helps provide better pressure support for board-level cooling.
Communication and Network Devices
DC5015 can support routers, network terminals, communication modules, and signal devices that operate continuously in compact enclosures. Its stronger airflow and pressure performance help maintain internal cooling around chips, power sections, and interface components.
Compact Equipment with Restricted Air Paths
DC5015 is suitable for compact products with narrow vents, shallow ducts, dense internal structures, or limited exhaust space. Its 15mm frame depth helps push airflow through more restrictive paths where thinner 50mm fans may not provide enough pressure.
DC 50×50×15mm Cooling Fan Video Showcase
Watch DC5015 in operation to see its 15mm frame, stronger airflow output, and compact thermal performance.
Watch DC5015 in operation to see its 15mm frame, stronger airflow output, and compact thermal performance.
FAQs About DC5015 DC Fan
A: The DC5015 DC cooling fan is used for compact electronic systems that need the airflow, pressure, voltage, and control characteristics shown in its specifications.
A: DC5015 is different because of its 50×50×15mm structure and performance balance, allowing it to serve cooling layouts that smaller or thinner fans may not handle effectively.
A: DC5015 is available with 5VDC / 12VDC / 24VDC options, allowing engineers to match different product power systems.
A: The maximum airflow is 19.46CFM / 0.551m³/min, and the maximum static pressure is 8.05mmH₂O / 78.9Pa, based on the listed high-performance model.
A: Yes. DC5015 can support FG, RD, PWM, Auto Restart, Polarity Protection, depending on project requirements and selected configuration.
A: Yes. YCCFAN can support OEM/ODM customization for DC5015, including voltage, speed, wire length, connector, bearing, airflow, and control functions.
