DC6010 60×60×10mm Slim Airflow DC Fan
A slim 60mm DC fan designed for wide-area airflow coverage in low-profile equipment that does not require high static pressure.
DC6010 prioritizes wide airflow coverage with only 10mm thickness, making it different from deeper 60mm fans that focus on pressure or high-load cooling.
Rated Voltage: 5VDC / 12VDC / 24VDC
Size: 60×60×10mm
Max Airflow: 18.13CFM / 0.513m³/min
Max Static Pressure: 3.81mmH₂O / 37.4Pa
Rated Speed: Up to 5000RPM
Key Specifications of DC6010 DC Fan
Compare DC6010 models by voltage, speed, airflow, pressure, current, noise, and weight to select a slim 60mm cooling fan for broad airflow coverage.
| Model | Bearing Type | Rate Voltage（VDC） | Current （A） | Speed （RPM） | Air Flow （CFM） | Static Pressure （mmH₂O） | Noise Level （dBA） | Weight （g） |
|---|---|---|---|---|---|---|---|---|
| YDH6010X05 | C or B | 5 | 0.23 | 5000 | 18.13 | 3.81 | 33.84 | 26 |
| YDM6010X05 | C or B | 5 | 0.15 | 4000 | 14.36 | 2.48 | 27.80 | 26 |
| YDL6010X05 | C or B | 5 | 0.07 | 3000 | 10.64 | 1.42 | 21.50 | 26 |
| YDH6010X12 | C or B | 12 | 0.10 | 5000 | 18.13 | 3.81 | 33.84 | 26 |
| YDM6010X24 | C or B | 24 | 0.04 | 4000 | 14.36 | 2.48 | 27.80 | 26 |
DC6010 Slim 60mm Airflow Fan Advantages
DC6010 is built for shallow installations where a larger 60mm airflow face is needed, but fan depth must remain low.
60mm Wide Airflow Face
The 60×60mm frame helps DC6010 cover more internal area than 50mm fans while keeping a slim body.
Only 10mm Thickness
The 10mm depth supports flat housings, panels, and shallow compartments where deeper fans cannot fit.
Lower-Speed Wide Cooling
Up to 18.13CFM airflow at 5000RPM gives practical air movement without relying on very high speed.
Practical Upgrade from Smaller Thin Fans
Compared with smaller thin fans, DC6010 offers a larger 60mm airflow area while keeping a slim 10mm profile, making it a practical upgrade for shallow devices.

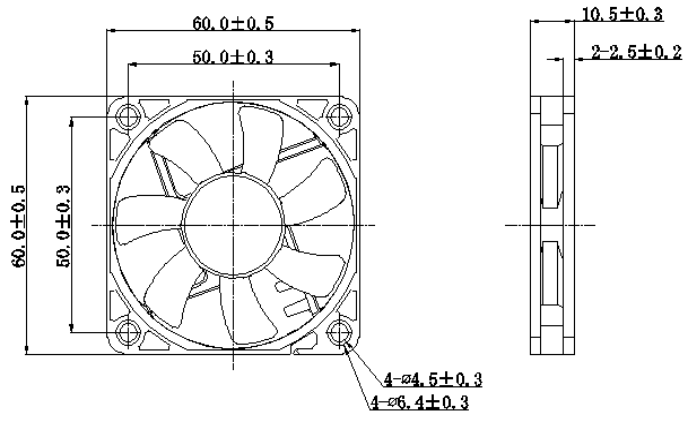

YCCFAN DC6010 Product Overview
Learn how DC6010 uses a slim 60mm frame to provide broad airflow coverage for low-profile cooling layouts.
DC6010 is a 60×60×10mm DC cooling fan designed for equipment where airflow needs to cover a wider internal area but installation height is limited. It is more airflow-coverage oriented than pressure-driven models.
With PBT UL94V-0 materials, C/B bearing options, and optional FG, RD, PWM, auto restart, and polarity protection, DC6010 supports both standard wide-area cooling and monitored fan designs.

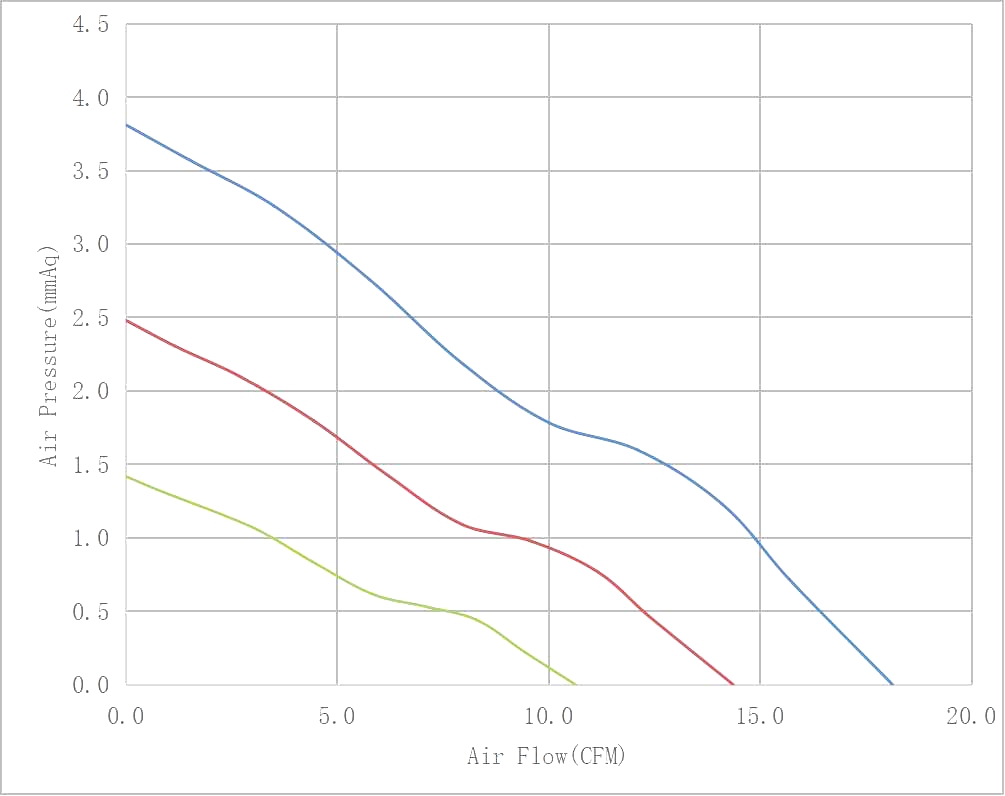

DC6010 Airflow & Static Pressure Performance Curve
Use the DC6010 P-Q curve to evaluate low-profile airflow delivery and pressure behavior across different speed levels.
DC6010 Applications for Slim 60mm Cooling
DC6010 is ideal for low-height products that need wider airflow coverage across shallow internal spaces, especially where air circulation matters more than high-resistance airflow penetration.
Get Cooling Support
Thin Device Housings
DC6010 fits shallow electronic enclosures where internal height is limited and a 15mm or 20mm fan may cause mechanical interference. Its 10mm slim frame allows designers to add active cooling while keeping the product structure thin and compact.
Wide PCB Cooling
The 60mm airflow face helps distribute air across a larger PCB area, making DC6010 suitable for boards where heat comes from multiple components rather than one single hotspot. It can support cooling around chips, regulators, drivers, and other distributed board-level heat sources.
Display and Control Panels
DC6010 can be used in display modules, control panels, HMI devices, and interface units where the internal depth is limited but heat still needs to be removed from boards or backlight areas. Its slim structure makes it easier to integrate behind flat panel designs.
Small Equipment Ventilation
For compact devices with open or semi-open vents, DC6010 can help improve internal air circulation and reduce heat buildup. It is suitable for equipment where the airflow path is not heavily blocked and the main goal is to move more air across the internal space.
Noise-Conscious Airflow Designs
When broad airflow is needed but maximum fan speed is not required, DC6010 can be selected in lower-speed configurations to balance airflow and noise. This makes it suitable for compact electronics, panels, and equipment that need stable ventilation with more controlled acoustic performance.
DC 60×60×10mm Cooling Fan Video Showcase
Watch DC6010 in operation to see its slim 60mm frame, wide airflow face, and low-profile cooling behavior.
Watch DC6010 in operation to see its slim 60mm frame, wide airflow face, and low-profile cooling behavior.
FAQs About DC6010 DC Fan
A: The DC6010 DC cooling fan is used for compact electronic systems that need the airflow, pressure, voltage, and control characteristics shown in its specifications.
A: DC6010 is different because of its 60×60×10mm structure and performance balance, allowing it to serve cooling layouts that smaller or thinner fans may not handle effectively.
A: DC6010 is available with 5VDC / 12VDC / 24VDC options, allowing engineers to match different product power systems.
A: The maximum airflow is 18.13CFM / 0.513m³/min, and the maximum static pressure is 3.81mmH₂O / 37.4Pa, based on the listed high-performance model.
A: Yes. DC6010 can support FG, RD, PWM, Auto Restart, Polarity Protection, depending on project requirements and selected configuration.
A: Yes. YCCFAN can support OEM/ODM customization for DC6010, including voltage, speed, wire length, connector, bearing, airflow, and control functions.
