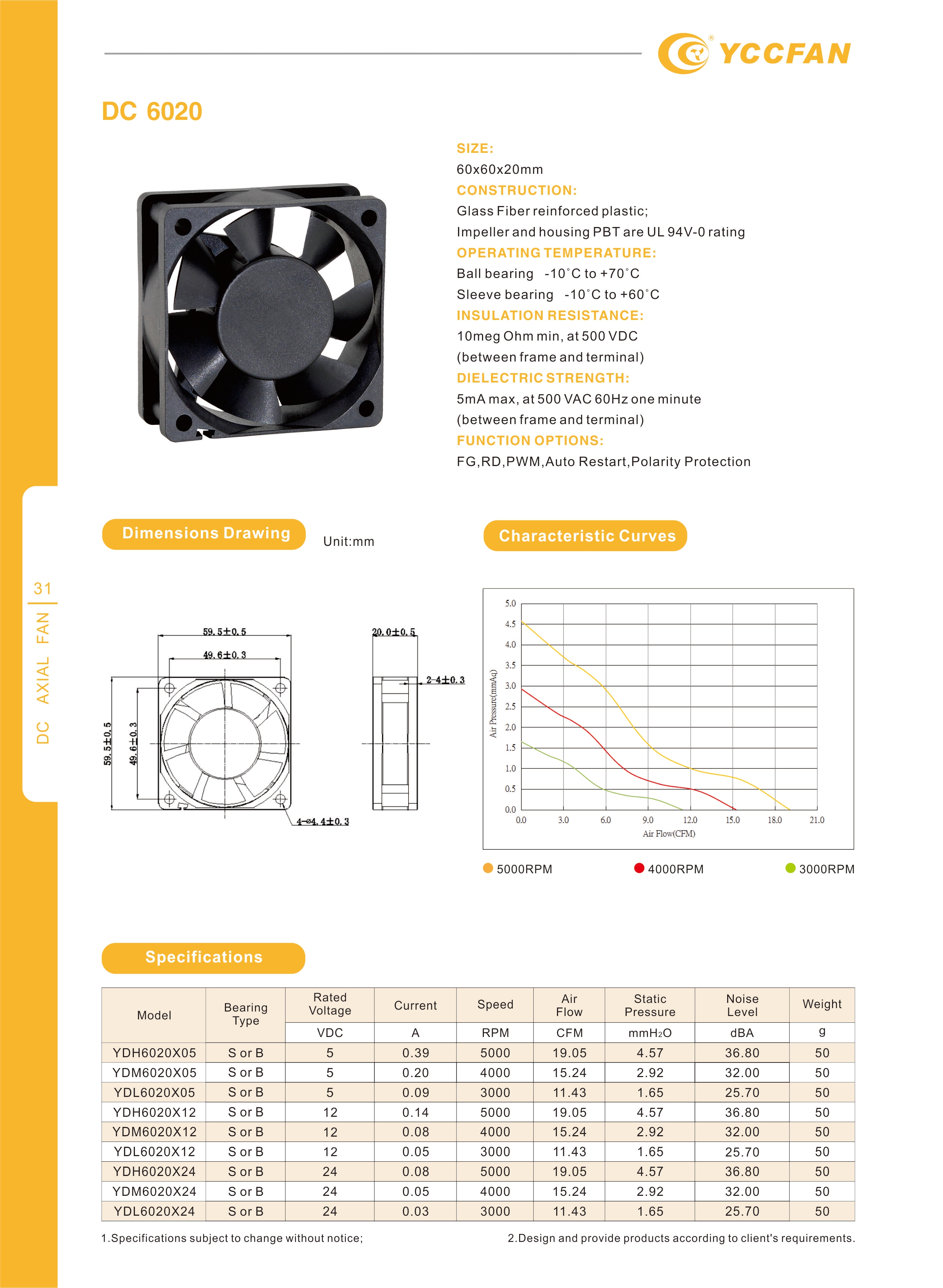

DC6020 60×60×20mm High-Airflow DC Cooling Fan
A 20mm deep 60mm DC cooling fan designed for higher airflow and pressure support in compact electronic and power systems.
DC6020 provides a major airflow step up from 60×60×15mm models, while remaining more compact than 25mm thick high-output fans.
Rated Voltage: 5VDC / 12VDC / 24VDC
Size: 60×60×20mm
Max Airflow: 36.45CFM / 1.032m³/min
Max Static Pressure: 11.18mmH₂O / 109.6Pa
Rated Speed: Up to 7000RPM
Key Specifications of DC6020 DC Fan
Compare DC6020 models by voltage, speed, airflow, pressure, current, noise, and bearing type to choose a high-airflow 60mm DC fan.
| Model | Bearing Type | Rate Voltage（VDC） | Current （A） | Speed （RPM） | Air Flow （CFM） | Static Pressure （mmH₂O） | Noise Level （dBA） | Weight （g） |
|---|---|---|---|---|---|---|---|---|
| YDU6020X12 | CS or Two Ball | 12 | 0.50 | 7000 | 36.45 | 11.18 | 41.00 | 48 |
| YDS6020X12 | CS or Two Ball | 12 | 0.35 | 6000 | 30.16 | 8.78 | 36.70 | 48 |
| YDH6020X05 | CS or Two Ball | 5 | 0.39 | 5000 | 24.34 | 6.02 | 32.30 | 48 |
| YDM6020X05 | CS or Two Ball | 5 | 0.20 | 4000 | 19.77 | 4.06 | 25.80 | 48 |
| YDU6020X24 | CS or Two Ball | 24 | 0.25 | 7000 | 36.45 | 11.18 | 41.00 | 48 |
| YDL6020X24 | CS or Two Ball | 24 | 0.03 | 3000 | 14.56 | 2.32 | 19.60 | 48 |
DC6020 High-Airflow 60mm Fan Advantages
DC6020 uses a 20mm frame to increase airflow and pressure capacity for compact systems with higher heat loads.
20mm Deep 60mm Frame
The 60×60×20mm frame gives DC6020 more airflow space than 15mm models.
Up to 36.45CFM Airflow
The high-output versions deliver strong air volume for compact equipment with rising heat density.
Pressure for Restricted Paths
Up to 11.18mmH₂O pressure supports airflow through moderate ducts, vents, and component barriers.
CS or Two Ball Reliability Options
Bearing options make DC6020 suitable for systems requiring longer operation or cost-sensitive configurations.

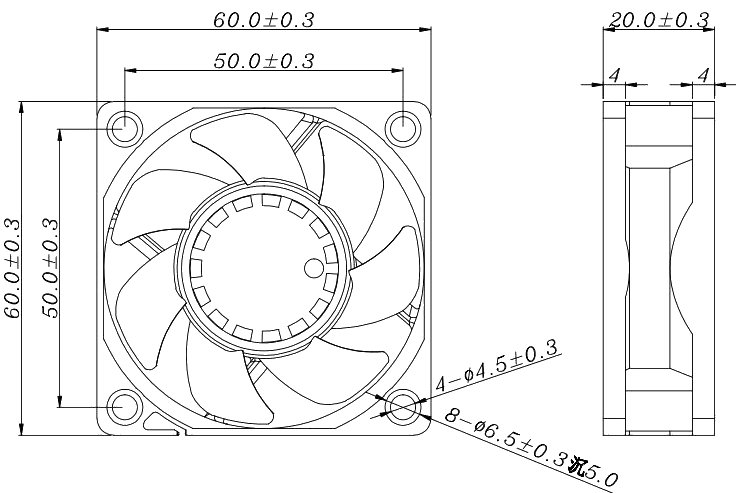

YCCFAN DC6020 Product Overview
Learn how DC6020 uses a 20mm frame depth to deliver higher air volume and pressure for compact thermal systems.
DC6020 is a 60×60×20mm DC cooling fan designed for applications that need more airflow than 10mm or 15mm 60mm fans can provide. It is positioned for compact systems with higher cooling demand.
With up to 36.45CFM airflow, 11.18mmH₂O pressure, CS/two ball bearing options, and optional control functions, DC6020 supports power electronics, communication modules, and industrial devices.

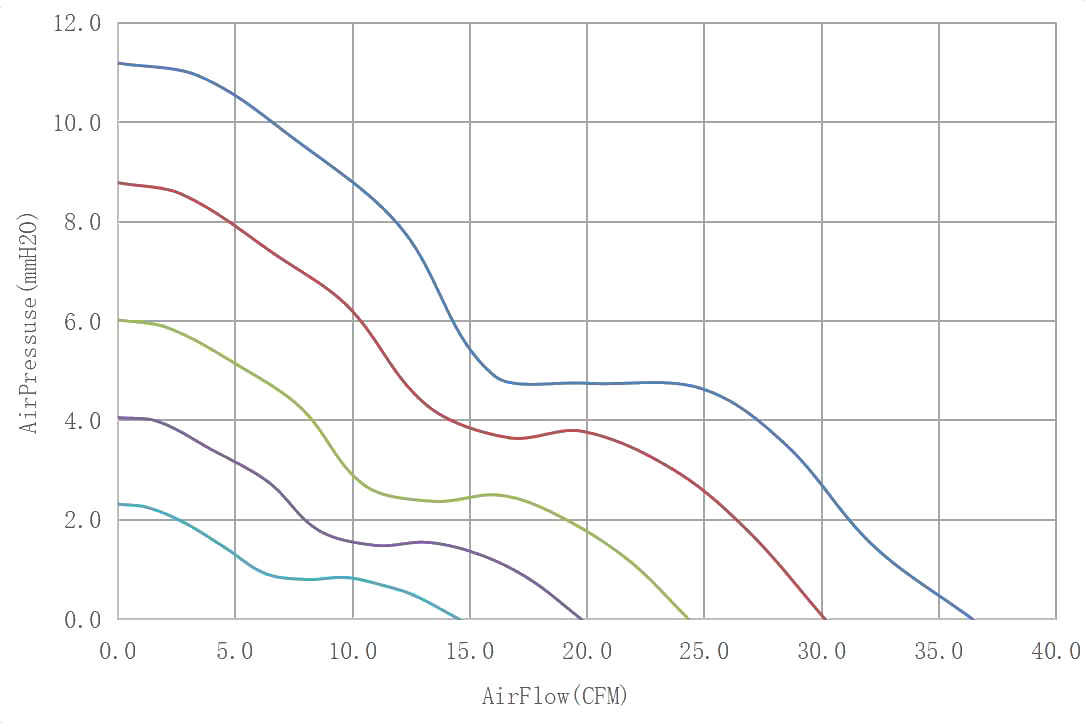

DC6020 Airflow & Static Pressure Performance Curve
Use the DC6020 P-Q curve to evaluate high-airflow performance and pressure support for 20mm deep 60mm cooling designs.
DC6020 Applications for High-Airflow 60mm Cooling
DC6020 is ideal for compact systems where 15mm fans cannot provide enough airflow, pressure support, or cooling headroom for higher heat loads.
Get Cooling Support
Power Supply Cooling
DC6020 can be used in compact power supplies, DC converters, charging modules, and power control units where heat density is higher and airflow demand is stronger. Its 20mm frame provides more cooling headroom than thinner 60mm fans, helping move heat away from transformers, MOSFETs, capacitors, and other power components.
Telecom and Network Equipment
DC6020 can support communication modules, network terminals, routers, signal equipment, and small telecom devices that operate continuously inside enclosed housings. Its stronger airflow and pressure support help maintain stable air movement around chips, power sections, interface areas, and densely arranged internal boards.
Industrial Control Systems
With 24V model availability and stronger airflow output, DC6020 is suitable for compact industrial controllers, automation modules, embedded systems, and electrical control devices. It can match common industrial power platforms while providing more reliable cooling for equipment that runs under continuous load.
Moderate Ducted Cooling
DC6020 is suitable for cooling structures with short ducts, guided airflow paths, partially blocked vents, or internal layouts with moderate resistance. Its pressure output helps airflow move through defined routes where slimmer 60mm fans may lose performance.
Compact High-Load Modules
For compact modules with concentrated heat sources, DC6020 provides additional cooling capacity through its deeper 20mm frame. It is suitable for high-load electronic assemblies, driver modules, power boards, and small equipment where both airflow volume and pressure support are needed within limited space.
DC 60×60×20mm Cooling Fan Video Showcase
Watch DC6020 in operation to see its 20mm deep frame, stronger airflow, and pressure-supported cooling behavior.
Watch DC6020 in operation to see its 20mm deep frame, stronger airflow, and pressure-supported cooling behavior.
FAQs About DC6020 DC Fan
A: The DC6020 DC cooling fan is used for compact electronic systems that need the airflow, pressure, voltage, and control characteristics shown in its specifications.
A: DC6020 is different because of its 60×60×20mm structure and performance balance, allowing it to serve cooling layouts that smaller or thinner fans may not handle effectively.
A: DC6020 is available with 5VDC / 12VDC / 24VDC options, allowing engineers to match different product power systems.
A: The maximum airflow is 36.45CFM / 1.032m³/min, and the maximum static pressure is 11.18mmH₂O / 109.6Pa, based on the listed high-performance model.
A: Yes. DC6020 can support FG, RD, PWM, Auto Restart, Polarity Protection, depending on project requirements and selected configuration.
A: Yes. YCCFAN can support OEM/ODM customization for DC6020, including voltage, speed, wire length, connector, bearing, airflow, and control functions.
