60x60x25mm Multi-Voltage DC Fan DC6025F
60x60x25mm Multi-Voltage DC Fan DC6025F

60x60x25mm Multi-Voltage DC Fan DC6025F

Choose 5V, 12V, 24V or 48V operation within a 60mm frame, with airflow grades for compact electronic equipment.

DC6025F uses a 60×60×25mm frame and offers speed grades from 3,500 to 9,000RPM. Available models reach 46.76CFM free-air flow and 17.47mmH₂O maximum static pressure. Select the voltage and speed variant against the equipment's airflow resistance, not by free-air CFM alone.

Rated Voltage: 5V / 12V / 24V / 48V

Size: 60×60×25mm

Max Airflow: 46.76CFM

Max Static Pressure: 17.47mmH₂O

Max Speed: 9,000RPM

Request a Sample

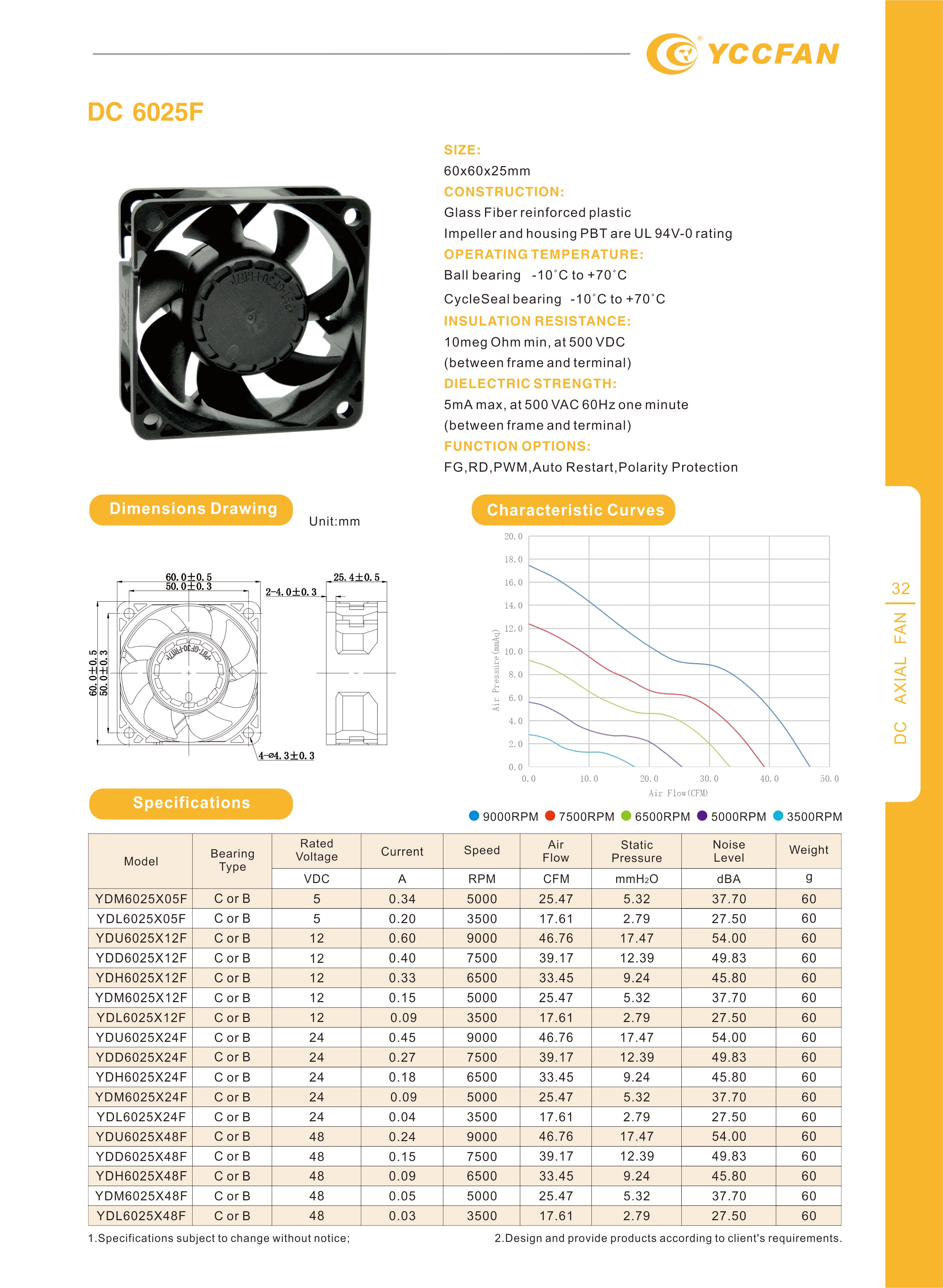

60x60x25mm DC6025F Voltage and Speed Specifications

Compare rated voltage, current, speed, airflow, pressure and noise for the exact ordering code.

ModelBearing
Type
Rate
Voltage(VDC)
Current
(A)
Speed
(RPM)
Air Flow
(CFM)
Static Pressure
(mmH₂O)
Noise Level
(dBA)
YDM6025X05FC/B50.34500025.475.3237.70
YDL6025X05FC/B50.20350017.612.7927.50
YDU6025B12FB120.60900046.7617.4754.00
YDD6025B12FB120.40750039.1712.3949.83
YDH6025X12FC/B120.33650033.459.2445.80
YDM6025X12FC/B120.15500025.475.3237.70
YDL6025X12FC/B120.09350017.612.7927.50
YDU6025B24FB240.45900046.7617.4754.00
YDD6025B24FB240.27750039.1712.3949.83
YDH6025X24FC/B240.18650033.459.2445.80
YDM6025X24FC/B240.09500025.475.3237.70
YDL6025X24FC/B240.04350017.612.7927.50
YDU6025B48FB480.24900046.7617.4754.00
YDD6025B48FB480.15750039.1712.3949.83
YDH6025X48FC/B480.09650033.459.2445.80
YDM6025X48FC/B480.05500025.475.3237.70
YDL6025X48FC/B480.03350017.612.7927.50

Both CycleSeal and ball-bearing configurations appear in the range; availability depends on the selected speed grade.

Multi-Voltage DC Fan Advantages for Compact Equipment

Four rated voltage families, five speed grades and up to 17.47mmH₂O static pressure within a 60×60×25mm frame for compact cooling designs.

Four Rated Voltage Families

5V, 12V, 24V and 48V variants enable the same 60×60mm mounting footprint to be evaluated across embedded equipment, industrial controllers and telecom power designs.

17.47mmH₂O Static Pressure for Restricted Air Paths

The 9,000RPM grade reaches 17.47mmH₂O maximum pressure. That upper-end capability can be useful where grilles, heatsinks or short ducts increase resistance; final airflow depends on the operating point.

Five DC Fan Speed Grades for Thermal Matching

Choose among 3,500, 5,000, 6,500, 7,500 and 9,000RPM models to balance airflow requirement, electrical draw and acoustics without forcing every system to the fastest version.

Bearing and Optional PWM Fan Control

CycleSeal or ball bearings are listed by model, while FG, RD and PWM are function options. Confirm wiring, signal levels and the selected bearing code before sampling.

YCCFAN DC6025F 60mm Axial Fan Design and Fit

A 25mm-deep axial fan family spanning low-voltage electronics and 48V equipment.

DC6025F 60x60x25mm fan dimension drawing

DC6025F retains a 60mm square footprint while providing 25mm of frame depth. When retrofitting an enclosure, check the 50mm mounting-hole pitch, available depth and unobstructed inlet and outlet clearances before comparing performance grades.

Glass-fiber-reinforced PBT housing and impeller components carry a UL 94V-0 flammability rating. Electrical choices run from 5V to 48V, with optional feedback and control functions. These options should be specified against the actual ordering code rather than assumed across every version.

DC6025F DC Fan Airflow and Static Pressure Curves

Five characteristic curves show the airflow trade-off as system resistance increases. Select the speed grade by finding the intersection between the fan curve and the enclosure-resistance curve, then verify current and noise for that ordering code. The 46.76CFM free-air maximum and 17.47mmH₂O shut-off pressure are not simultaneous operating values.

DC6025F 60x60x25mm fan airflow curve

Applications in Power and Control Equipment

Supporting cooling evaluation in telecom power shelves, industrial converters, filtered instrument enclosures, embedded controls and short-duct designs.

Get Cooling Support
60mm dc fan application 1.png

48V Telecom Power Modules

48V configurations can be evaluated for communication power shelves and compact network hardware. Confirm fan current, electrical connector and pressure losses around dense boards.

60mm dc fan application 2.png

Industrial DC Converters

Converters and motor-drive electronics often concentrate heat around switching devices and heatsinks. The 25mm frame allows a pressure-oriented speed grade where a thinner fan cannot maintain the required airflow.

60mm dc fan application 3.png

Filtered Instrument Enclosures

Grilles or washable filters add resistance that changes fan output. Use the P-Q curve to select the DC6025F grade with adequate working-point airflow, and test the enclosure under service conditions.

60mm dc fan application 4.png

Embedded Control Assemblies

The 5V and 12V choices suit compact electronic platforms that use local DC power rails. Lower-speed models can be considered where airflow demand is modest and acoustic limits matter.

60mm dc fan application 5.png

Short-Duct Directed Cooling

When heat is concentrated in one area, short ducts can guide air toward a heatsink or a power stage. Confirm pressure loss at bends and the outlet before finalizing fan speed.

YCCFAN DC6025F 60x60x25mm Fan Video Showcase

Show the exact 60×60×25mm model, 50mm mounting-hole pitch, airflow direction and connector. If demonstrating speed changes, label each voltage and speed configuration clearly; do not imply that one recording represents all models.

DC6025F is a 60×60×25mm multi-voltage DC fan family covering 5V, 12V, 24V and 48V operation with five speed grades from 3,500 to 9,000RPM. Product videos for this series should present the actual installed size, mounting-hole pitch and connector orientation so that engineers can confirm mechanical fit before sampling.

When comparing performance on camera, each recording should state the voltage and speed configuration being demonstrated, because airflow and noise differ across the range. Contact YCCFAN for sample requests or the latest test footage of the DC6025F series.

DC6025F Selection and Specification FAQs

Which DC6025F DC fan voltage should I choose?

A: DC6025F is available in 5V, 12V, 24V and 48V variants. Select the ordering code that matches the equipment power rail and required speed.

What clearance is required for installation?

A: The fan measures 60×60×25mm and uses a 50mm mounting-hole pitch. Allow sufficient space for the connector, cable routing, inlet and exhaust.

How is DC6025F fan airflow affected by system resistance?

A: The highest free-air rating is 46.76CFM. Installed airflow is lower when grilles, filters or ducts add resistance, so use the relevant P-Q curve.

Is PWM DC fan speed control available for DC6025F?

A: PWM, FG and RD are listed as optional functions. Confirm the electrical signal specification and pinout for the selected sample before controller integration.

Which bearing should be specified?

A: DC6025F offers CycleSeal and ball-bearing configurations, but the available bearing depends on the exact speed grade and ordering code.

What details does YCCFAN need for DC6025F OEM selection?

A: Share voltage, available 60×60×25mm space, target airflow at system resistance, noise limit, connector, control signals and expected order volume.
