DC4010 X05/X12/X24 Balanced DC Cooling Fan
A balanced 40mm DC fan with multi-voltage coverage, C/B bearing options, and practical airflow-pressure performance for compact system cooling.
DC4010 sits between quiet low-pressure 40mm designs and higher-output F versions. Its 40×40×10mm structure delivers up to 6.76CFM airflow and 4.35mmH₂O pressure, making it suitable for balanced compact cooling where airflow, noise, and pressure all matter.
Rated Voltage: 5VDC / 12VDC / 24VDC
Size: 40×40×10mm
Max Airflow: 6.76CFM / 0.191m³/min
Max Static Pressure: 4.35mmH₂O / 42.6Pa
Rated Speed: Up to 8000RPM
Key Specifications of DC4010 DC Fan
Compare DC4010 models by voltage, bearing, speed, airflow, pressure, current, noise, and weight to choose the right DC cooling fan for your design.
| Model | Bearing Type | Rate Voltage（VDC） | Current （A） | Speed （RPM） | Air Flow （CFM） | Static Pressure （mmH₂O） | Noise Level （dBA） | Weight （g） |
|---|---|---|---|---|---|---|---|---|
| YDH4010X05 | C or B | 5 | 0.16 | 8000 | 6.76 | 4.35 | 29.60 | 17 |
| YDM4010X05 | C or B | 5 | 0.11 | 6500 | 5.49 | 2.87 | 25.10 | 17 |
| YDL4010X05 | C or B | 5 | 0.05 | 5000 | 4.22 | 1.77 | 19.50 | 17 |
| YDH4010X12 | C or B | 12 | 0.06 | 8000 | 6.76 | 4.35 | 29.60 | 17 |
| YDM4010X12 | C or B | 12 | 0.04 | 6500 | 5.49 | 2.87 | 25.10 | 17 |
| YDL4010X12 | C or B | 12 | 0.03 | 5000 | 4.22 | 1.77 | 19.50 | 17 |
| YDH4010X24 | C or B | 24 | 0.05 | 8000 | 6.76 | 4.35 | 29.60 | 17 |
| YDM4010X24 | C or B | 24 | 0.04 | 6500 | 5.49 | 2.87 | 25.10 | 17 |
| YDL4010X24 | C or B | 24 | 0.03 | 5000 | 4.22 | 1.77 | 19.50 | 17 |
DC4010 Balanced 40mm Fan Advantages
DC4010 is built for designs that need a practical balance between airflow, pressure, voltage flexibility, and compact 10mm installation.
Balanced Airflow and Pressure Profile
With 6.76CFM airflow and 4.35mmH₂O pressure, DC4010 is positioned for applications that need more pressure than quiet airflow-only fans without moving to a heavier high-output version.
40×40×10mm Practical Installation Size
The 10mm frame gives DC4010 more structure than thin 7mm fans while keeping a compact profile for small electronics.
5V / 12V / 24V System Flexibility
Multiple voltage versions allow one fan platform to support different electronics, industrial controls, and communication power designs.
C/B Bearing and Control Options
C/B bearings and optional FG, RD, PWM, auto restart, and polarity protection help engineers tune DC4010 for cost, lifetime, control, and protection needs.

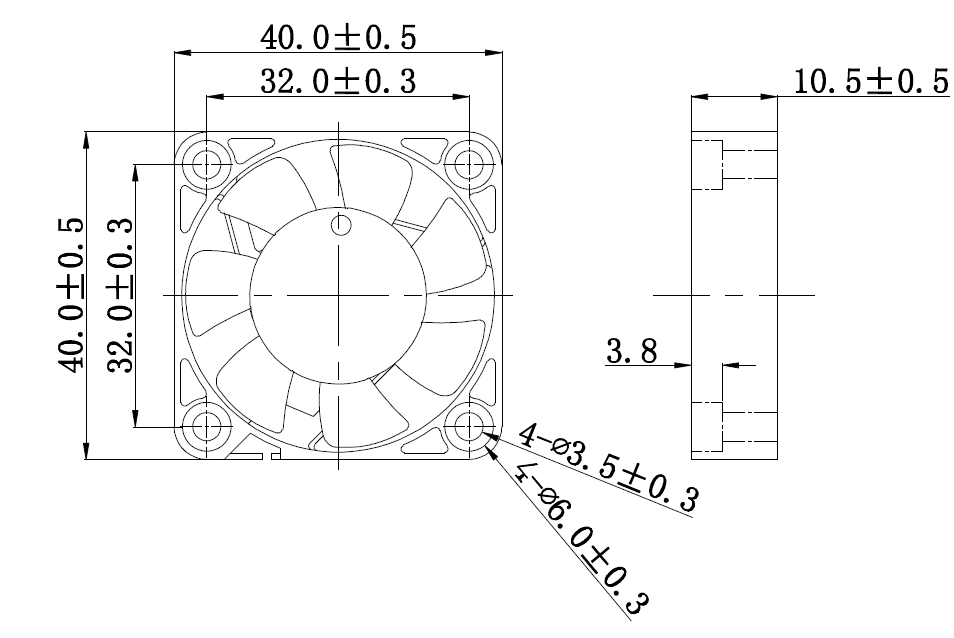

YCCFAN DC4010 Product Overview
Understand the key design details of DC4010, including structure, material safety, performance range, and function options.
DC4010 is a 40×40×10mm DC cooling fan designed as a balanced 40mm option. It does not focus only on low noise or maximum airflow; instead, it provides a practical middle ground for compact systems that need dependable air movement and pressure support.
The fan uses glass fiber reinforced plastic and PBT UL94V-0 flame-retardant materials. Its C/B bearing options and optional signal/control functions help support OEM designs that require stable operation and configuration flexibility.

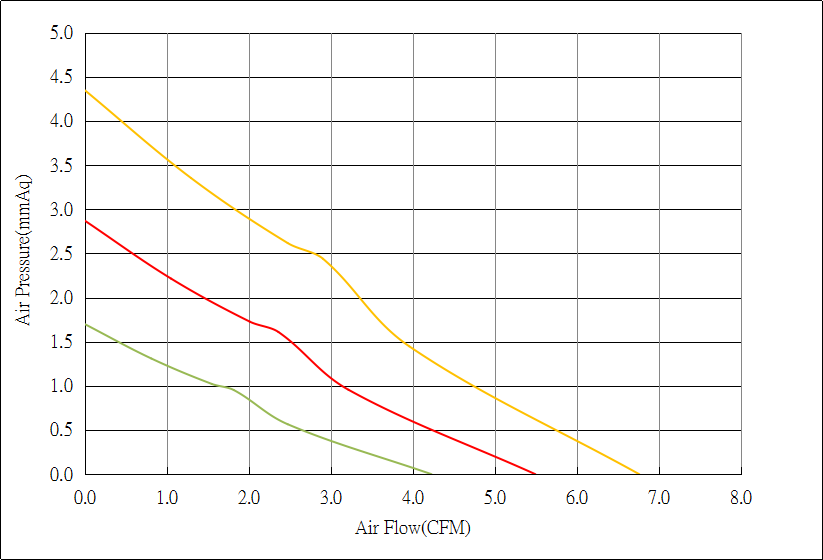

DC4010 Airflow & Static Pressure Performance Curve
Use the DC4010 P-Q curve to evaluate airflow and static pressure behavior across different speed levels and cooling resistance conditions.
DC4010 Applications for Balanced Compact Cooling
Ideal for compact electronics that need dependable airflow and moderate pressure support without moving to specialized low-noise or high-pressure fan types.
Get Cooling Support
Balanced Compact Device Cooling
DC4010 is suitable for compact products that need airflow and pressure support without relying on extreme speed or a thick fan body.
Embedded Control and Driver Boards
The 40mm size and optional feedback functions make it useful around embedded controllers, driver circuits, and regulator areas.
Small Communication Equipment
DC4010 can support routers, terminals, and signal modules where 12V or 24V power and steady airflow may be required.
Moderate-Resistance Enclosures
Its pressure level helps in enclosures with vents, grilles, or compact component placement, as long as the airflow path is not severely blocked.
Configurable OEM Cooling Designs
The voltage, bearing, and control options make DC4010 suitable for OEM projects that need a configurable 40mm cooling fan platform.
DC 40×40×10mm Cooling Fan Video Showcase
Watch DC4010 in operation to see its balanced 40mm structure, airflow-pressure behavior, and compact cooling performance.
Watch DC4010 in operation to see its balanced 40mm structure, airflow-pressure behavior, and compact cooling performance.
FAQs About DC4010 DC Fan
A: DC4010 is used for balanced compact electronics, embedded boards, communication modules, and configurable OEM cooling designs, where the fan size, airflow level, pressure behavior, and voltage options match compact electronic cooling requirements.
A: DC4010 differs by offering a middle-ground 40mm cooling profile: more pressure than airflow-only quiet fans and less weight/output than higher-airflow F versions.
A: The available voltage options are 5VDC / 12VDC / 24VDC, allowing the fan to match different low-voltage or system-level power designs.
A: Yes. DC4010 can support optional FG, RD, PWM, auto restart, and polarity protection functions depending on project requirements.
A: The fan uses glass fiber reinforced plastic with PBT UL94V-0 flame-retardant impeller and housing materials.
A: Yes. YCCFAN can support customization for DC4010, including voltage, speed, wire length, connector, bearing, control function, and application environment.
