DC6015 60×60×15mm Balanced Performance DC Fan
A 60mm DC fan with 15mm depth, designed to balance higher airflow, improved pressure, and bearing choices for compact equipment.
DC6015 sits between slim 60×60×10mm airflow fans and deeper 60×60×20mm pressure fans, making it a balanced choice for many compact cooling systems.
Rated Voltage: 5VDC / 12VDC / 24VDC
Size: 60×60×15mm
Max Airflow: 29.48CFM / 0.835m³/min
Max Static Pressure: 8.79mmH₂O / 86.2Pa
Rated Speed: Up to 6500RPM
Key Specifications of DC6015 DC Fan
Compare DC6015 models by voltage, speed, airflow, pressure, current, noise, and bearing type to select a balanced 60mm DC fan.
| Model | Bearing Type | Rate Voltage（VDC） | Current （A） | Speed （RPM） | Air Flow （CFM） | Static Pressure （mmH₂O） | Noise Level （dBA） | Weight （g） |
|---|---|---|---|---|---|---|---|---|
| YDD6015X05F | CS or Two Ball | 5 | 0.52 | 5000 | 24.45 | 6.24 | 37.50 | 38.5 |
| YDH6015X05F | CS or Two Ball | 5 | 0.45 | 4500 | 20.00 | 4.16 | 32.20 | 38.5 |
| YDM6015X05F | CS or Two Ball | 5 | 0.23 | 3500 | 15.38 | 2.51 | 25.20 | 38.5 |
| YDU6015X12F | CS or Two Ball | 12 | 0.37 | 6500 | 29.48 | 8.79 | 42.20 | 38.5 |
| YDU6015X24F | CS or Two Ball | 24 | 0.20 | 6500 | 29.48 | 8.79 | 42.20 | 38.5 |
DC6015 Balanced 60mm Cooling Fan Advantages
DC6015 is designed for applications that need more than slim airflow, but do not require the full depth of 20mm or 25mm pressure fans.
15mm Mid-Depth Structure
The 60×60×15mm frame provides more airflow room than 10mm fans while remaining thinner than deep-frame models.
Up to 29.48CFM Airflow
DC6015 delivers strong air volume for compact products with higher heat output.
CS or Two Ball Bearing
Bearing options support different cost, lifetime, and continuous-operation requirements.
Useful Pressure Support
Up to 8.79mmH₂O pressure helps airflow pass through moderate internal resistance.

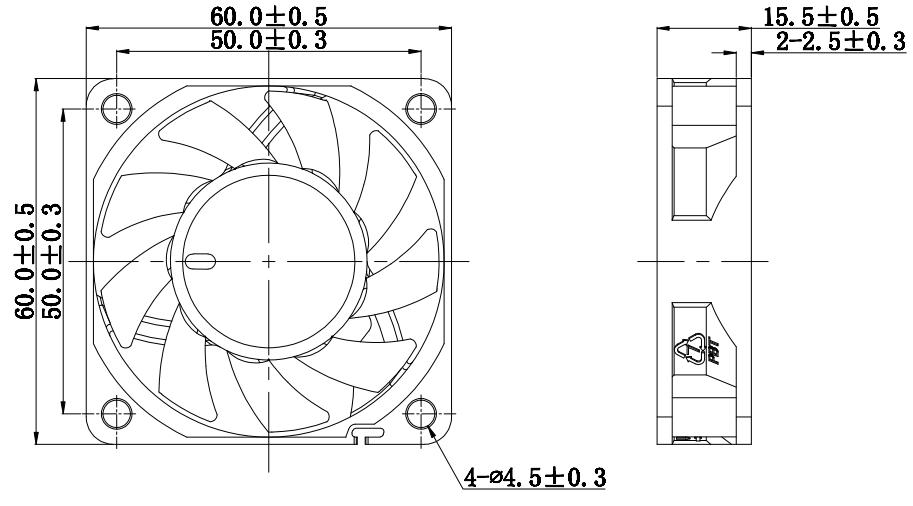

YCCFAN DC6015 Product Overview
Understand how DC6015 balances 60mm airflow output, moderate frame depth, and bearing flexibility for compact cooling systems.
DC6015 is a 60×60×15mm DC cooling fan built for systems where 10mm slim fans are not enough, but a 20mm or 25mm deep fan may be too large. It provides a practical midpoint for airflow and pressure.
With CS or two ball bearing options, PBT UL94V-0 materials, and optional control functions, DC6015 can support compact devices that require stable airflow and long-running cooling.

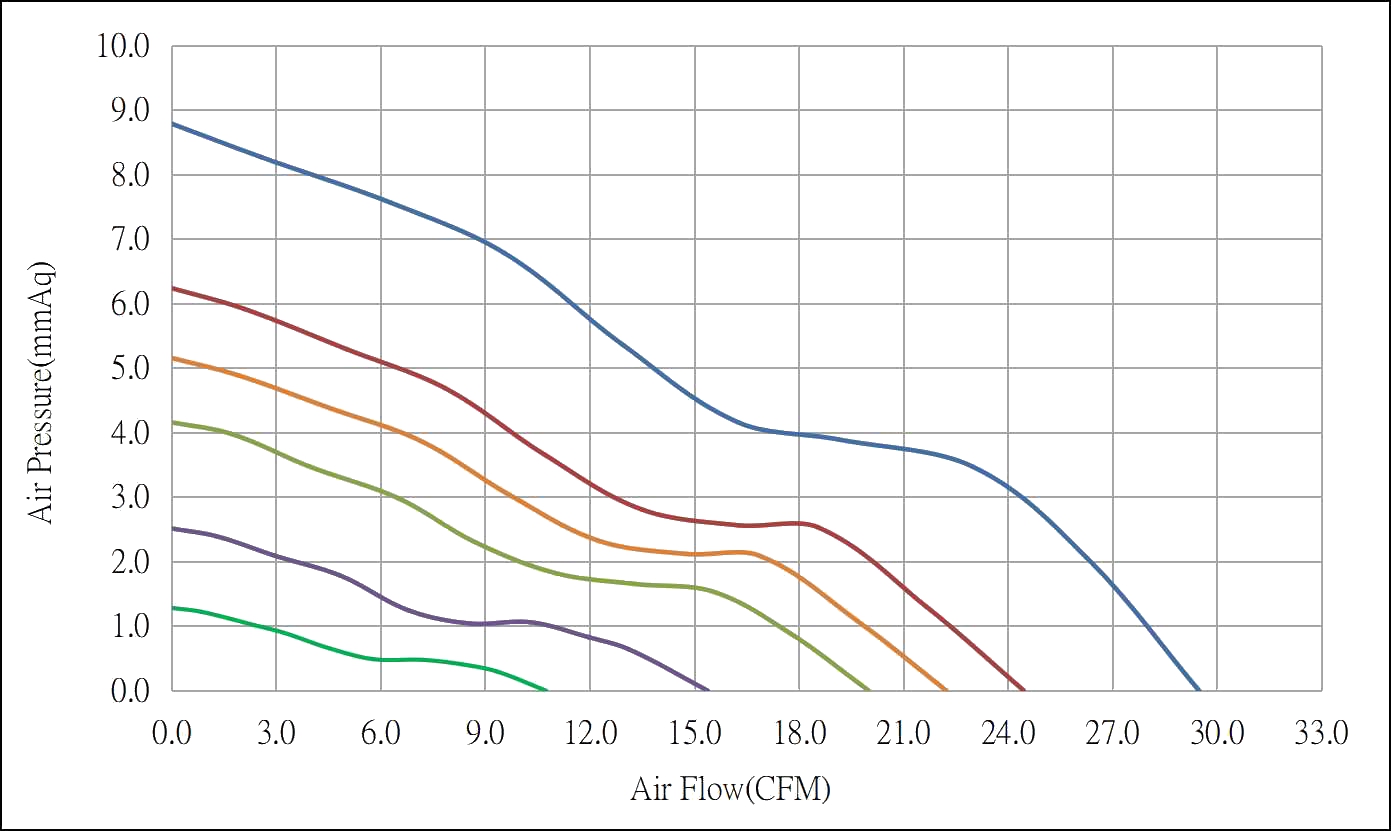

DC6015 Airflow & Static Pressure Performance Curve
Use the DC6015 P-Q curve to compare balanced airflow and pressure performance across multiple voltage and speed options.
DC6015 Applications for Balanced 60mm Cooling
DC6015 is suitable for compact equipment that needs stronger airflow and better cooling stability than slim 60mm fans, while still avoiding the space requirements of heavy deep-frame designs.
Get Cooling Support
Compact Power Supplies
DC6015 can be used in compact power supplies, converter modules, adapters, and small power units that generate continuous heat during operation. Its 15mm frame provides stronger airflow than slim 10mm fans, helping improve heat removal around transformers, MOSFETs, capacitors, and other power components.
Control Cabinets and Modules
For compact control cabinets, automation modules, and embedded control systems, DC6015 offers a practical balance between airflow performance and installation depth. It is suitable for devices where a 10mm fan may not provide enough cooling, but a 20mm or deeper fan would take up too much internal space.
Communication Equipment
DC6015 can support network terminals, communication modules, routers, and signal devices that operate for long periods inside compact enclosures. Its 60mm airflow face helps cool chips, power sections, and interface areas, while the 15mm depth provides more stable airflow than slimmer fan designs.
Dense PCB Sections
DC6015 is suitable for PCB sections where components are moderately crowded and airflow may be partially blocked by connectors, heat sinks, or taller parts. Its balanced airflow and pressure support help move air through board-level structures without requiring a much thicker high-pressure fan.
Long-Running Cooling Systems
With CS or two ball bearing options, DC6015 is suitable for equipment where fan stability, service life, and continuous operation are important. It can be used in electronic systems that need reliable daily cooling rather than short-term or occasional airflow support.
DC 60×60×15mm Cooling Fan Video Showcase
Watch DC6015 in operation to see its 15mm frame, balanced airflow, and stable 60mm cooling performance.
Watch DC6015 in operation to see its 15mm frame, balanced airflow, and stable 60mm cooling performance.
FAQs About DC6015 DC Fan
A: The DC6015 DC cooling fan is used for compact electronic systems that need the airflow, pressure, voltage, and control characteristics shown in its specifications.
A: DC6015 is different because of its 60×60×15mm structure and performance balance, allowing it to serve cooling layouts that smaller or thinner fans may not handle effectively.
A: DC6015 is available with 5VDC / 12VDC / 24VDC options, allowing engineers to match different product power systems.
A: The maximum airflow is 29.48CFM / 0.835m³/min, and the maximum static pressure is 8.79mmH₂O / 86.2Pa, based on the listed high-performance model.
A: Yes. DC6015 can support FG, RD, PWM, Auto Restart, Polarity Protection, depending on project requirements and selected configuration.
A: Yes. YCCFAN can support OEM/ODM customization for DC6015, including voltage, speed, wire length, connector, bearing, airflow, and control functions.
