DC9238F 92x92x38 DC Fan
A 38mm-deep axial fan with 12V, 24V and 48V models for equipment that needs a choice of airflow and static pressure levels.
DC9238F combines a 92×92×38mm DC fan frame with speeds from 6,500 to 12,500 RPM. Its 12 listed models cover 88.33–169.73 CFMairflow and 26.54–91.06 mmH₂O maximum static pressure. The fastest model is the 48 VDC YDU9238B48F. Select the supply voltage first, then compare the relevant curves, current and noise before choosing a speed.
Rated voltage: 12 VDC / 24 VDC / 48 VDC
Size: 92×92×38mm
Airflow: 88.33–169.73 CFM
Maximum static pressure: 26.54–91.06 mmH₂O
Speed: 6,500–12,500 RPM
Bearing type in listed models: Ball bearing
DC9238F Specifications
Compare the 12V, 24V and 48V models by speed, current, airflow, maximum static pressure and noise.
| Model | Voltage （VDC） | Current （A） | Speed （RPM） | Airflow （CFM） | Max. Pressure （mmH₂O） | Noise （dBA） | Weight （g） |
|---|---|---|---|---|---|---|---|
| YDH9238B12F | 12 VDC | 1.88 | 9,500 | 129.55 | 58.55 | 62.80 | 285 |
| YDM9238B12F | 12 VDC | 1.12 | 8,000 | 108.91 | 41.67 | 58.50 | 285 |
| YDL9238B12F | 12 VDC | 0.60 | 6,500 | 88.33 | 26.54 | 53.50 | 285 |
| YDH9238B24F | 24 VDC | 1.45 | 11,000 | 151.06 | 73.77 | 66.30 | 285 |
| YDD9238B24F | 24 VDC | 0.94 | 9,500 | 129.55 | 58.55 | 62.80 | 285 |
| YDM9238B24F | 24 VDC | 0.56 | 8,000 | 108.91 | 41.67 | 58.50 | 285 |
| YDL9238B24F | 24 VDC | 0.30 | 6,500 | 88.33 | 26.54 | 53.50 | 285 |
| YDH9238B48F | 48 VDC | 1.07 | 12,500 | 169.73 | 91.06 | 69.40 | 285 |
| YDD9238B48F | 48 VDC | 0.72 | 11,000 | 151.06 | 73.77 | 66.30 | 285 |
| YDH9238B48F | 48 VDC | 0.47 | 9,500 | 129.55 | 58.55 | 62.80 | 285 |
| YDM9238B48F | 48 VDC | 0.28 | 8,000 | 108.91 | 41.67 | 58.50 | 285 |
| YDL9238B48F | 48 VDC | 0.15 | 6,500 | 88.33 | 26.54 | 53.50 | 285 |
YCCFAN 92mm Fan Performance and Options
A 38mm frame, three voltage groups and multiple speed levels let designers select performance for a defined mounting space.
92×92×38mm Mounting Format
DC9238F provides a 92mm square frame with a 38mm depth. Before specifying it, check the equipment’s available depth and the mounting-hole spacing shown on the dimension drawing.
High Static Pressure Fan Options
The listed maximum static pressure rises from 26.54 mmH₂O at 6,500 RPM to 91.06 mmH₂O for the 12,500 RPM model. Compare the curves at the system’s expected resistance when selecting a suitable version.
48V DC Fan for the Highest Output
YDU9238B48F runs at 12,500 RPM and lists 169.73 CFM airflow and 91.06 mmH₂O maximum static pressure. Check the supply condition, current and noise requirement before selecting this version.
Ball Bearing Fan and Function Options
All listed DC9238F models use ball bearings. FG, RD, PWM, auto restart, polarity protection and IP68 functions can be specified according to project requirements. Confirm the available configuration for the selected model.
YCCFAN DC9238F Product Overview
DC9238F is a 92×92×38mm DC fan designed for equipment requiring a larger airflow capacity within a compact mounting format. It provides 12V, 24V and 48V options with multiple speed levels, allowing designers to compare airflow, static pressure and noise according to different cooling requirements.
With airflow ranging from 88.33 to 169.73 CFM and maximum static pressure from 26.54 to 91.06 mmH₂O, DC9238F supports applications requiring stronger airflow resistance capability. All listed models use ball bearings, with FG, RD, PWM, auto restart, polarity protection and IP68 options available for different system configurations.

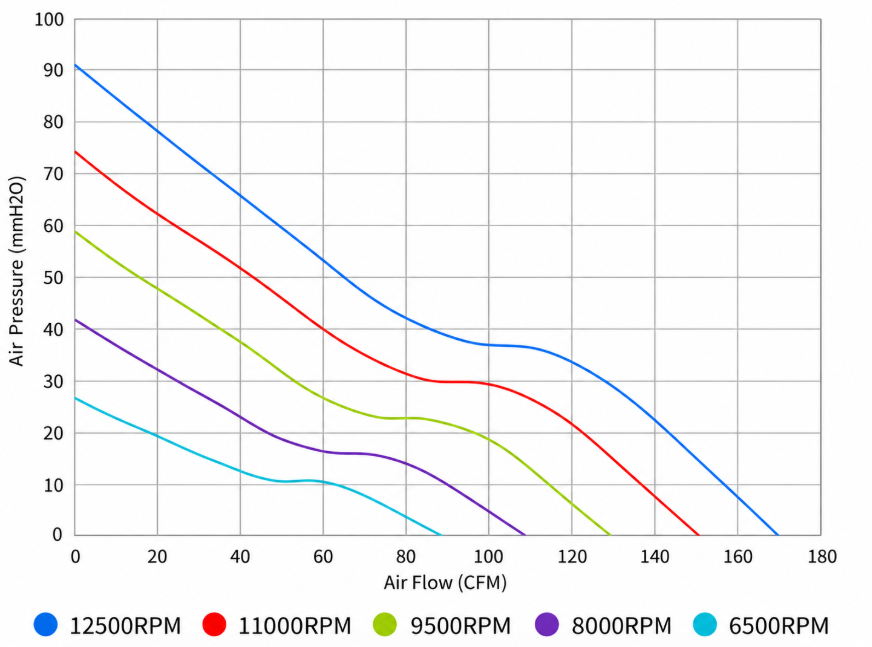

DC9238F Airflow & Static Pressure Performance Curve
Compare the five speed curves to see how available airflow changes as resistance in the equipment increases.
The curves cover 6,500, 8,000, 9,500, 11,000 and 12,500 RPM. Use the curve for the voltage and speed being considered to assess the expected operating point. The 12,500 RPM curve corresponds to the 48V model; it should not be applied to the 12V or 24V versions.
Applications in 92mm High Performance Cooling Systems
Supporting cooling applications in electronic enclosures, power equipment, communication systems, industrial control equipment and cabinets requiring a 92×92×38mm fan with higher airflow and static pressure capability.
Get Cooling Support
Electronic Equipment Enclosures
DC9238F can be evaluated where the enclosure accommodates a 92×92×38mm fan. Check inlet and outlet openings, internal obstructions and the expected operating point before selecting a speed.
Power and Control Equipment
The 12V, 24V and 48V groups allow selection according to the available equipment supply. Use the current, noise and performance data of the exact model when planning the electrical and thermal design.
Communication Equipment
Where the frame and depth fit, compare the available speeds against the resistance of the assembled airflow path. Specify any required feedback or control function as part of the model inquiry.
Cabinet Ventilation Fit
For projects evaluating a cabinet cooling fan, DC9238F can be considered when the cabinet has a matching 92mm mounting position and room for the 38mm frame. Compare the relevant curve with the resistance of the full ventilation path before choosing a model.
Industrial Control Equipment
DC9238F supports industrial control equipment requiring stronger airflow and pressure capability. Multiple speed levels allow designers to balance cooling performance, system resistance and operating noise.
YCCFAN DC9238F 92×92×38mm Fan Video Showcase
Watch DC9238F in operation to see its frame depth, mounting form and rotating blades. The video helps assess physical fit; use the dimension drawing and the curve for the selected model when making the final choice.
DC9238F shows its 38mm frame depth, mounting structure and rotating blades during operation, helping users evaluate the physical installation requirements before selecting a model.
Combine the video with the dimension drawing and performance curve to compare the suitable voltage, speed and configuration for the final equipment design.
DC9238F Voltage and Performance FAQs

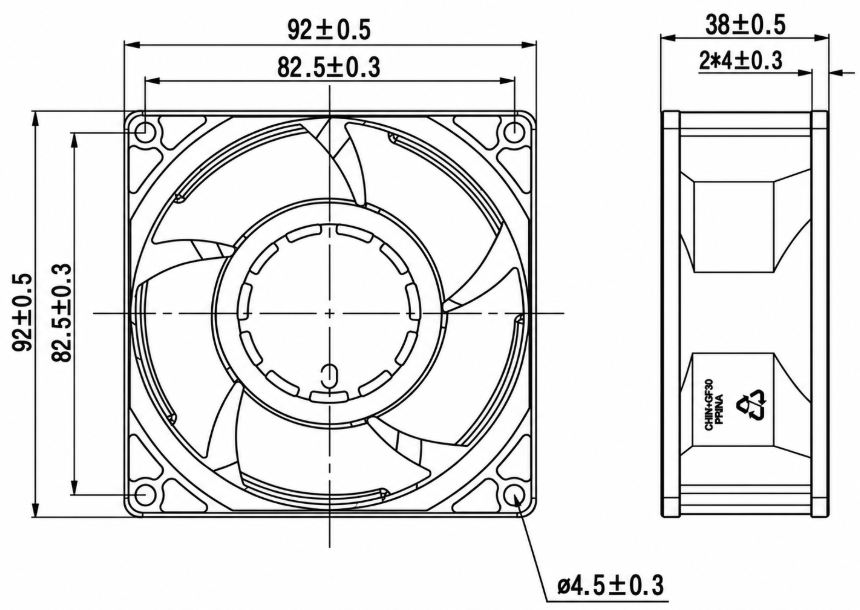

A: Check the 92×92×38mm overall size, the 82.5±0.3mm mounting-hole spacing shown in the drawing and the space needed around the inlet and outlet. Confirm wiring clearance before replacing an existing fan.
A: No. The 12V group covers 6,500–9,500 RPM; the 24V group covers 6,500–11,000 RPM; and the 48V group covers 6,500–12,500 RPM. Choose the supply voltage before comparing speeds.
A: Start with the higher-speed curves available at your supply voltage and compare airflow at the system’s expected resistance. The 48V, 12,500 RPM model has the highest listed maximum static pressure, 91.06 mmH₂O, but the correct choice depends on the operating point and acceptable noise.
A: YDU9238B48F provides the highest listed airflow and maximum static pressure: 169.73 CFM and 91.06 mmH₂O. It also has the highest listed noise level, 69.40 dBA, and draws 1.07 A at 48 VDC. Check the supply and noise budget before choosing it.
A: The 6,500 RPM models have the lowest listed noise level in this series at 53.50 dBA. Check whether their 88.33 CFM airflow and 26.54 mmH₂O maximum static pressure meet the equipment requirement; if not, compare the 8,000 RPM curve.
A: Provide the supply voltage, target speed and any required PWM, FG or RD function. IP68 is also listed as an option; if it is required, include the protection requirement so YCCFAN can confirm the exact available configuration.
